* slike so simbolične

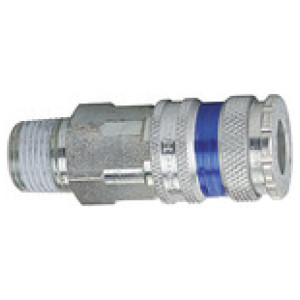

Hitre spojke I.D. 7.6, pocinkano /medenina, R 3/8 zunanji navoj
SKU: 107357RIE
EAN: 4047322060950
Quick-connect coupling I.D. 7.6, galvanised steel / brass, R 3/8 ET, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Povpraševanje
Ohišje: Steel
Povezava: R 3/8 ET
Rokav: Hardened and nickel-plated steel
Vzmet: Stainless steel
Pretok: 2100 l/min (air)
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107358RIE | R 1/2 ET | 22 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107356RIE | R 1/4 ET | 20 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107357RIE | R 3/8 ET | 20 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Quick-connect coupling I.D. 7.6, galvanised steel / brass, R 3/8 ET, Operating pressure max. 16 bar, Temp. -20 °C to 100 °C
High-quality, one-hand quick disconnect couplings made of brass / steel for high flow rates.
Specially designed for all applications susceptible to severe mechanical wear.
Strong, impact and vibration-resistant design for demanding environments.
The stream line type has an integrated hose stem.
Tehnični podatki in specifikacije
| DN | 7.6 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | R 3/8 ET |
| a/f [mm] | 20 |
| Ohišje | Steel |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 2100 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Hardened and nickel-plated steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Dolžina [mm] | 61.0 |
