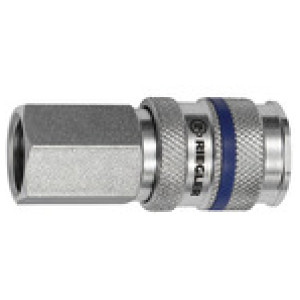

Hitre spojke I.D. 7.8, , G 1/4 notranji navoj slika
Hitre spojke I.D. 7.8, , G 1/4 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 7.8, , G 1/4 notranji navoj

SKU: 141515RIE
EAN: 4047322568074

Quick-connect coupling I.D. 7.8, Steel, G 1/4 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Single-sided blocking, high quality and robust quick connect coupling for high flow values.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.

"
Čas dobave: Predvidoma 3 - 5 dni
19,57 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
141515RIE G 1/4 IT 19 54.0
Čas dobave: Predvidoma 3 - 5 dni
19,57 € Natisni
141516RIE G 3/8 IT 19 54.0
Čas dobave: Predvidoma 3 - 5 dni
19,57 € Natisni
141517RIE G 1/2 IT 24 56.0
Čas dobave: Predvidoma 3 - 5 dni
20,91 € Natisni

Opis

Quick-connect coupling I.D. 7.8, Steel, G 1/4 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Single-sided blocking, high quality and robust quick connect coupling for high flow values.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, mining.

"

Tehnični podatki in specifikacije

DN 7.8
Povezava G 1/4 IT
Delovni tlak 0 - 35 bar
Ohišje Galvanised steel
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 2000 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Rokav Galvanised steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Navojni kos Galvanised steel
Ventil Die-cast zinc (zamac)
a/f [mm] 19
Dolžina [mm] 54.0
