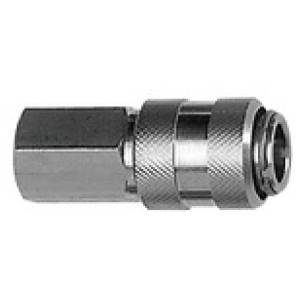

Hitre spojke I.D. 7.8,Nerjavno jeklo 1.4305, G 3/8 notranji navoj slika
Hitre spojke I.D. 7.8,Nerjavno jeklo 1.4305, G 3/8 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 7.8,Nerjavno jeklo 1.4305, G 3/8 notranji navoj

SKU: 107421RIE
EAN: 4047322060363

Quick-connect coupling I.D. 7.8, Stainless steel 1.4305, G 3/8 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, food technology, aerospace, mining, offshore.

"
Čas dobave: Predvidoma 3 - 5 dni
244,74 €
ali od 11,98 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 11,98 € x 24 mesecev
  • 22,93 € x 12 mesecev
  • 44,85 € x 6 mesecev
  • 88,70 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
107422RIE G 1/2 IT 24 57.5
Čas dobave: Predvidoma 3 - 5 dni
259,85 € Natisni
107420RIE G 1/4 IT 19 55.5
Čas dobave: Predvidoma 3 - 5 dni
244,74 € Natisni
107421RIE G 3/8 IT 19 54.5
Čas dobave: Predvidoma 3 - 5 dni
244,74 € Natisni

Opis

Quick-connect coupling I.D. 7.8, Stainless steel 1.4305, G 3/8 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C

"

One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

These quick disconnect couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, food technology, aerospace, mining, offshore.

"

Tehnični podatki in specifikacije

DN 7.8
Povezava G 3/8 IT
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Stainless steel 1.4305
Tesnilo FKM
Min. temperatura medija [°C] -15
Max. temperatura medija [°C] 200
Min. sobna temperatura [°C] -15
Max. sobna temperatura [°C] 200
Pretok 1800 l/min (air)
Krogla Stainless steel
Vzmet Stainless steel
Telo ventila Stainless steel 1.4305
Rokav Stainless steel 1.4305
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
a/f [mm] 19
Dolžina [mm] 54.5
