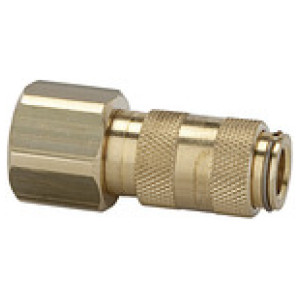

Hitre spojke z N.N. I.D. 2.7iz med.G 1/8 N.N.
SKU: 107072RIE
EAN: 4047322057967
Quick-connect coupling I.D. 2.7, bright brass, G 1/8 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Povpraševanje
Krogla: Stainless steel
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Ohišje: Brass with a bare metal surface
Povezava: G 1/8 IT
Pritrdilni obroč: Stainless steel
Rokav: Brass with a bare metal surface
Telo ventila: Brass with a bare metal surface
Vzmet: Stainless steel
Pretok: 165 l/min (air)
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107071RIE | M5 IT | 9 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107072RIE | G 1/8 IT | 12 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Quick-connect coupling I.D. 2.7, bright brass, G 1/8 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20°C to 100°C
"One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive.
"Tehnični podatki in specifikacije
| DN | 2.7 |
| Povezava | G 1/8 IT |
| a/f [mm] | 12 |
| Dolžina [mm] | 28.0 |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 165 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Brass with a bare metal surface |
| Rokav | Brass with a bare metal surface |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
