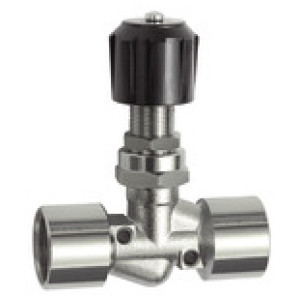

Iglični ventil, nikljana med., pritrditev plošče, IT/IT, 1/8
SKU: 136230RIE
EAN: 4047322502894
Needle valve, Nickel-plated brass, panel mounting, IT/IT, Rp 1/8, DN 4, AF1 19, Operating temp. -10 °C to 80 °C, PN max. 18 bar
Čas dobave: Predvidoma 3 - 5 dni
16,03 €

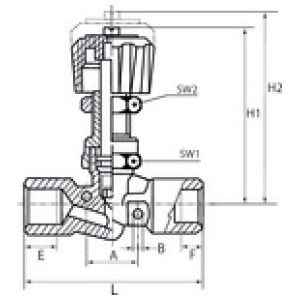

| Šifra | Navoj | DN | E [mm] | F [mm] | a/f 1 [mm] | A [mm] | H1 [mm] | H2 [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 136231RIE | Rp 1/4 | 4 | 8.0 | 8.0 | 19 | 20.5 | 51.0 | 56.0 | 57.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,19 € |  | |
| 136233RIE | Rp 1/2 | 8 | 11.0 | 11.0 | 21 | 21.0 | 70.2 | 77.4 | 69.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,77 € | | |
| 136232RIE | Rp 3/8 | 8 | 10.0 | 10.0 | 21 | 21.0 | 70.2 | 77.4 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,08 € | | |
| 136230RIE | Rp 1/8 | 4 | 6.7 | 6.7 | 19 | 20.5 | 51.0 | 56.0 | 51.6 | Čas dobave: Predvidoma 3 - 5 dni | 16,03 € | |
Opis
Needle valve, Nickel-plated brass, panel mounting, IT/IT, Rp 1/8, DN 4, AF1 19, Operating temp. -10 °C to 80 °C, PN max. 18 bar
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Standardni navoj | Rp thread and R thread acc. to ISO 7/1 |
| Max. obratovalni tlak [bar] | 18 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 80 |
| Navoj | Rp 1/8 |
| DN | 4 |
| Tesnilo | NBR |
| Steblo | Brass |
| Kolo | Plastic |
| A [mm] | 20.5 |
| B [mm] | 4.5 |
| E [mm] | 6.7 |
| F [mm] | 6.7 |
| L [mm] | 51.6 |
| H1 [mm] | 51.0 |
| H2 [mm] | 56.0 |
| a/f 1 [mm] | 19 |
| a/f 2 [mm] | 17 |
