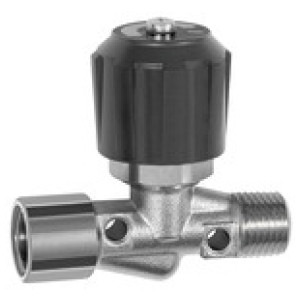

Iglični ventil, nikljana medenina, IT/ET, Rp/R 1/2, DN 8
SKU: 136237RIE
EAN: 4047322502962
Needle valve, Nickel-plated brass, IT/ET, Rp/R 1/2, DN 8, AF1 21, Operating temperature -10 °C to 80 °C, PN max. 18 bar
Čas dobave 3 - 5 dni
24,31 €

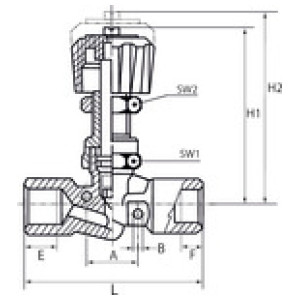

| Šifra | Navoj | DN | E [mm] | F [mm] | A [mm] | a/f 1 [mm] | H1 [mm] | H2 [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 136237RIE | Rp/R 1/2 | 8 | 11.0 | 11.0 | 21.0 | 21 | 52.7 | 59.9 | 63.5 | Čas dobave 3 - 5 dni | 24,31 € |  | |
| 136236RIE | Rp/R 3/8 | 8 | 10.0 | 9.0 | 21.0 | 21 | 52.7 | 59.9 | 56.5 | Čas dobave 3 - 5 dni | 22,84 € | | |
| 136235RIE | Rp/R 1/4 | 4 | 8.0 | 8.5 | 20.5 | 19 | 38.2 | 42.8 | 53.0 | Čas dobave 3 - 5 dni | 14,13 € | | |
| 136234RIE | Rp/R 1/8 | 4 | 6.7 | 8.5 | 20.5 | 19 | 38.2 | 42.8 | 52.3 | Čas dobave 3 - 5 dni | 13,62 € | |
Opis
Needle valve, Nickel-plated brass, IT/ET, Rp/R 1/2, DN 8, AF1 21, Operating temperature -10 °C to 80 °C, PN max. 18 bar
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Standardni navoj | Rp thread and R thread acc. to ISO 7/1 |
| Max. obratovalni tlak [bar] | 18 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 80 |
| Navoj | Rp/R 1/2 |
| DN | 8 |
| Tesnilo | NBR |
| Steblo | Brass |
| Kolo | Plastic |
| A [mm] | 21.0 |
| B [mm] | 4.5 |
| E [mm] | 11.0 |
| F [mm] | 11.0 |
| L [mm] | 63.5 |
| H1 [mm] | 52.7 |
| H2 [mm] | 59.9 |
| a/f 1 [mm] | 21 |
