* slike so simbolične
Kamlok hitra spojka,thread, A tip, Alu, G 1 1/4
SKU: 108068RIE
EAN: 4047322403566

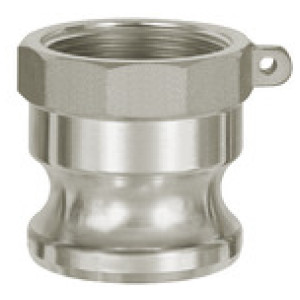

Kamlok quick-connect plug with interior thread, A type, Aluminium, G 1 1/4, Plug Ø 45 mm, Pressure max. 16 bar, Temp. max. 68 °C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.
| Šifra | Navoj | Vtič Ø [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108066RIE | G 3/4 | 32 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,67 € |  | |
| 108067RIE | G 1 | 37 | 50.8 | Čas dobave: Predvidoma 3 - 5 dni | 5,08 € | | |
| 108070RIE | G 2 | 63 | 59.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,13 € | | |
| 108069RIE | G 1 1/2 | 53 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,58 € | | |
| 108072RIE | G 3 | 92 | 71.7 | Čas dobave: Predvidoma 3 - 5 dni | 14,57 € | | |
| 108073RIE | G 4 | 120 | 71.2 | Čas dobave: Predvidoma 3 - 5 dni | 21,53 € | | |
| 108071RIE | G 2 1/2 | 76 | 79.2 | Čas dobave: Predvidoma 3 - 5 dni | 14,03 € | | |
| 108068RIE | G 1 1/4 | 45 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,32 € | |
Opis
Kamlok quick-connect plug with interior thread, A type, Aluminium, G 1 1/4, Plug Ø 45 mm, Pressure max. 16 bar, Temp. max. 68 °C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.
Tehnični podatki in specifikacije
| Navoj | G 1 1/4 |
| Max. obratovalni tlak [bar] | 16 |
| Vtič Ø [mm] | 45 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 68 |
| Tesnilo | NBR, resistant to oils and benzine |
| L [mm] | 55.0 |
