* slike so simbolične

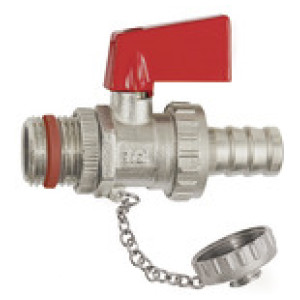

KFE krogelni ventil, nikljana medenina, G 1/2, s kapico I.D. 13
SKU: 103415RIE
EAN: 4047322401982
KFE ball valve, nickel-plated brass, Operating temperature 0 °C to 110 °C, G 1/2, Sleeve I.D. 13, PN max. 10 bar
Boiler, filling and drain valves for heating systems.
Čas dobave: Predvidoma 3 - 5 dni
13,26 €
Šifra | Krogla | Ohišje | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
103415RIE | Nickel-plated brass | Nickel-plated brass | Čas dobave: Predvidoma 3 - 5 dni | 13,26 € | ||
103414RIE | Brass | Brass | Čas dobave: Predvidoma 3 - 5 dni | 13,26 € |
Opis
KFE ball valve, nickel-plated brass, Operating temperature 0 °C to 110 °C, G 1/2, Sleeve I.D. 13, PN max. 10 bar
Boiler, filling and drain valves for heating systems.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Max. obratovalni tlak [bar] | 10 |
Max. delovna temperatura [°C] | 110 |
Navoj | G 1/2 |
Krogla | Nickel-plated brass |
Krogelno tesnilo | PTFE |
Tesnilo za cevno steblo | EPDM |
Tesnilo za rezalni obroč | PTFE |
Za cevi [mm] | I.D. 13 |
Cap tesnjenje | EPDM |
Stebelno tesnilo | EPDM |
Vrtljiva ročica | Zinc Die Cast |

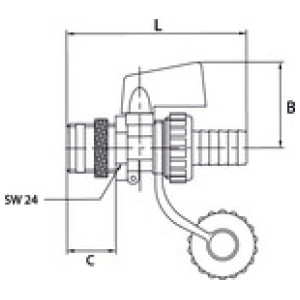

C [mm] | 20.0 |
L [mm] | 74.6 |
B [mm] | 37.0 |
