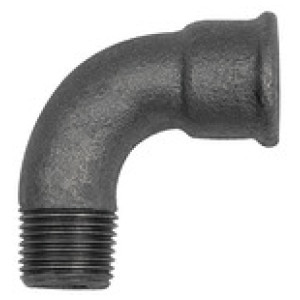

Koleno 1a 90° kratek Rp 3/4 i.R 3/4 a. Črno lito železo črn slika

* slike so simbolične

Koleno 1a 90° kratek Rp 3/4 i.R 3/4 a. Črno lito železo črn

SKU: 133581RIE
EAN: 4047322479264

Elbow 1a, 90°, short, Rp 3/4 IT, R 3/4 ET black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Elbow 1a, 90°, short, Rp 3/4 IT, R 3/4 ET black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 300
Material Black malleable iron B350-10, design symbol A
Površina Black
Navoj Rp/R 3/4
Standardni navoj acc. ISO 7-1
