* slike so simbolične

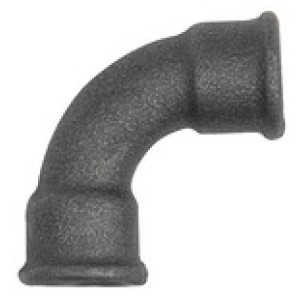

Koleno 2a 90° kratki Rp 11/4 i.Rp 11/4 i.Kovinski ž. črn
SKU: 133600RIE
EAN: 4047322479646
Elbow 2a, 90°, short, Rp 1 1/4 IT, Rp 1 1/4 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133598RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 4,73 € |  | |
| 133601RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 15,15 € | | |
| 133599RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 7,10 € | | |
| 133602RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 23,46 € | | |
| 133597RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | | |
| 133600RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 10,69 € | |
Opis
Elbow 2a, 90°, short, Rp 1 1/4 IT, Rp 1 1/4 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp 1 1/4 |
| Standardni navoj | acc. ISO 7-1 |
