* slike so simbolične
Koleno 2a, kratek, 90°, N.N./N.N.Rp 1/4,č. kovanlit. ž.
SKU: 112855RIE
EAN: 4047322251655

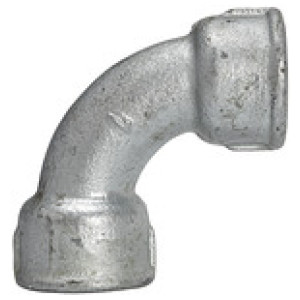

Elbow 2a, short, 90°, IT/IT, Rp 1/4, Operating temp. -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 112856RIE | Rp 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 10,13 € |  | |
| 112862RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 26,07 € | | |
| 112859RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 7,92 € | | |
| 112861RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 16,82 € | | |
| 112858RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 5,27 € | | |
| 112860RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 11,88 € | | |
| 112857RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,61 € | | |
| 112855RIE | Rp 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 12,24 € | |
Opis
Elbow 2a, short, 90°, IT/IT, Rp 1/4, Operating temp. -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp 1/4 |
| Standardni navoj | acc. ISO 7-1 |
