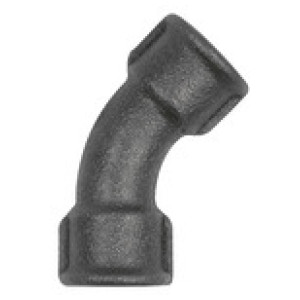

Koleno 41 45°, Rp 1/2 i.Rp 1/2 i.Kovinski železo črn slika

* slike so simbolične

Koleno 41 45°, Rp 1/2 i.Rp 1/2 i.Kovinski železo črn

SKU: 133612RIE
EAN: 4047322479752

Elbow 41, 45°, Rp 1/2 IT, Rp 1/2 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Čas dobave 3 - 5 dni
4,73 €
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
133611RIE Rp 3/8
Čas dobave 3 - 5 dni
5,48 € Natisni
133612RIE Rp 1/2
Čas dobave 3 - 5 dni
4,73 € Natisni
133615RIE Rp 1 1/4
Čas dobave 3 - 5 dni
14,85 € Natisni
133617RIE Rp 2
Čas dobave 3 - 5 dni
28,19 € Natisni
133616RIE Rp 1 1/2
Čas dobave 3 - 5 dni
19,58 € Natisni
133613RIE Rp 3/4
Čas dobave 3 - 5 dni
6,53 € Natisni
133618RIE Rp 2 1/2
Čas dobave 3 - 5 dni
56,38 € Natisni
133614RIE Rp 1
Čas dobave 3 - 5 dni
8,61 € Natisni

Opis

Elbow 41, 45°, Rp 1/2 IT, Rp 1/2 IT, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 300
Material Black malleable iron B350-10, design symbol A
Površina Black
Navoj Rp 1/2
Standardni navoj acc. ISO 7-1
