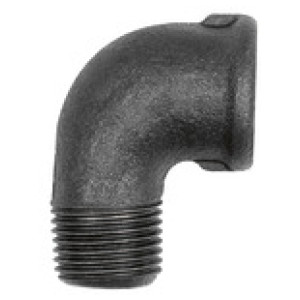

Koleno 92, 90°, Rp 11/4 i.R 11/4 a.Črno železno črno slika

* slike so simbolične

Koleno 92, 90°, Rp 11/4 i.R 11/4 a.Črno železno črno

SKU: 133634RIE
EAN: 4047322480130

Bracket 92, 90°, Rp 1 1/4 IT, R 1 1/4 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Čas dobave: Predvidoma 3 - 5 dni
7,45 €
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
133630RIE Rp/R 3/8
Čas dobave: Predvidoma 3 - 5 dni
2,32 € Natisni
133632RIE Rp/R 3/4
Čas dobave: Predvidoma 3 - 5 dni
2,68 € Natisni
133629RIE Rp/R 1/4
Čas dobave: Predvidoma 3 - 5 dni
2,32 € Natisni
133633RIE Rp/R 1
Čas dobave: Predvidoma 3 - 5 dni
4,16 € Natisni
133631RIE Rp/R 1/2
Čas dobave: Predvidoma 3 - 5 dni
1,83 € Natisni
133636RIE Rp/R 2
Čas dobave: Predvidoma 3 - 5 dni
14,14 € Natisni
133637RIE Rp/R 2 1/2
Čas dobave: Predvidoma 3 - 5 dni
34,68 € Natisni
133635RIE Rp/R 1 1/2
Čas dobave: Predvidoma 3 - 5 dni
10,27 € Natisni
133634RIE Rp/R 1 1/4
Čas dobave: Predvidoma 3 - 5 dni
7,45 € Natisni

Opis

Bracket 92, 90°, Rp 1 1/4 IT, R 1 1/4 ET, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1

According to DIN EN 10242 (previously 2950).

Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.

Working minimal temperature = -20 °C, 25 bar.

Working pressure for temperature range from -20 °C to 120 °C: 25 bar.

Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 300
Material Black malleable iron B350-10, design symbol A
Površina Black
Navoj Rp/R 1 1/4
Standardni navoj acc. ISO 7-1
