* slike so simbolične

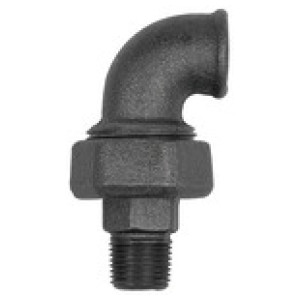

Koleno za vijake 97, N.N./Z.N.Rp 1,R 1črn
SKU: 133646RIE
EAN: 4047322480345
Fitting elbow 97, flat sealing, IT/ET, Rp 1, R 1, black malleable iron fitting, Operating temp. -20 °C to 200 °C, ISO 7-1
Maximum temperature and maximum operating pressure should not occur at the same time!
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
| Šifra | Navoj 1 | Navoj 2 | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 133647RIE | Rp 1 1/4 | R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 24,96 € |  | |
| 133644RIE | Rp 1/2 | R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 9,46 € | | |
| 133645RIE | Rp 3/4 | R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 11,82 € | | |
| 133648RIE | Rp 1 1/2 | R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 35,87 € | | |
| 133649RIE | Rp 2 | R 2 | Čas dobave: Predvidoma 3 - 5 dni | 49,08 € | | |
| 133646RIE | Rp 1 | R 1 | Čas dobave: Predvidoma 3 - 5 dni | 15,01 € | |
Opis
Fitting elbow 97, flat sealing, IT/ET, Rp 1, R 1, black malleable iron fitting, Operating temp. -20 °C to 200 °C, ISO 7-1
Maximum temperature and maximum operating pressure should not occur at the same time!
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Standardni navoj | acc. ISO 7-1 |
| Navoj 1 | Rp 1 |
| Navoj 2 | R 1 |
