* slike so simbolične

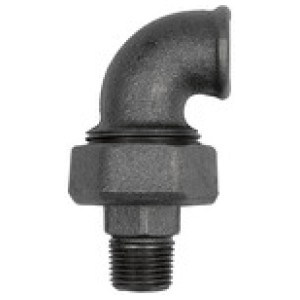

Koleno za vijake 98 N.N./Z.N. Rp11/4R11/4 črn
SKU: 133653RIE
EAN: 4047322480482
Fitting elbow 98, conical sealing IT/ET Rp 1 1/4, R 1 1/4, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj 1 | Navoj 2 | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 133650RIE | Rp 1/2 | R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 10,41 € |  | |
| 133652RIE | Rp 1 | R 1 | Čas dobave: Predvidoma 3 - 5 dni | 16,35 € | | |
| 133654RIE | Rp 2 | R 2 | Čas dobave: Predvidoma 3 - 5 dni | 51,64 € | | |
| 133651RIE | Rp 3/4 | R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 13,98 € | | |
| 133653RIE | Rp 1 1/4 | R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 26,72 € | |
Opis
Fitting elbow 98, conical sealing IT/ET Rp 1 1/4, R 1 1/4, black malleable iron fitting, Operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Standardni navoj | acc. ISO 7-1 |
| Navoj 1 | Rp 1 1/4 |
| Navoj 2 | R 1 1/4 |
