-19%
* slike so simbolične

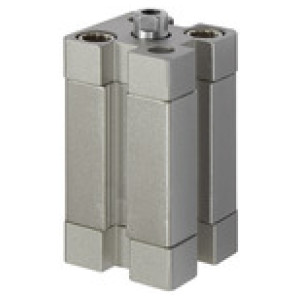

Kompaktni cilinder, enosmerni, P-Ø 32, hod 20, G1/8,ISO21287
SKU: 155832RIE
EAN: 4047322622103
Compact cyl.ISO 21287,single-acting,female piston rod,retr.,magnet,PistonØ32,Stroke20,G1/8,Work.press.max.10bar,Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Čas dobave 3 - 5 dni
53,18 €
42,54 €
| Šifra | Batnica IT | Povezava | Stroke [mm] | Bat Ø [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 155852RIE | M12x1.75 | G 1/8 | 20 | 80 | Čas dobave 3 - 5 dni | 109,99 € |  | |
| 155831RIE | M8x1.25 | G 1/8 | 15 | 32 | Čas dobave 3 - 5 dni | 41,61 € | | |
| 155837RIE | M8x1.25 | G 1/8 | 20 | 40 | Čas dobave 3 - 5 dni | 49,43 € | | |
| 155820RIE | M6x1.0 | M5 | 10 | 20 | Čas dobave 3 - 5 dni | 33,66 € | | |
| 155815RIE | M4x0.7 | M5 | 10 | 16 | Čas dobave 3 - 5 dni | 31,76 € | | |
| 155851RIE | M12x1.75 | G 1/8 | 15 | 80 | Čas dobave 3 - 5 dni | 108,59 € | | |
| 155821RIE | M6x1.0 | M5 | 15 | 20 | Čas dobave 3 - 5 dni | 34,42 € | | |
| 155817RIE | M4x0.7 | M5 | 20 | 16 | Čas dobave 3 - 5 dni | 32,86 € | | |
| 155840RIE | M10x1.5 | G 1/8 | 10 | 50 | Čas dobave 3 - 5 dni | 56,03 € | | |
| 155823RIE | M6x1.0 | M5 | 25 | 20 | Čas dobave 3 - 5 dni | 35,70 € | | |
| 155842RIE | M10x1.5 | G 1/8 | 20 | 50 | Čas dobave 3 - 5 dni | 57,89 € | | |
| 155814RIE | M4x0.7 | M5 | 5 | 16 | Čas dobave 3 - 5 dni | 31,59 € | | |
| 155847RIE | M10x1.5 | G 1/8 | 20 | 63 | Čas dobave 3 - 5 dni | 73,54 € | | |
| 155826RIE | M6x1.0 | M5 | 15 | 25 | Čas dobave 3 - 5 dni | 38,18 € | | |
| 155818RIE | M4x0.7 | M5 | 25 | 16 | Čas dobave 3 - 5 dni | 33,32 € | | |
| 155846RIE | M10x1.5 | G 1/8 | 15 | 63 | Čas dobave 3 - 5 dni | 72,62 € | | |
| 155843RIE | M10x1.5 | G 1/8 | 25 | 50 | Čas dobave 3 - 5 dni | 58,99 € | | |
| 155825RIE | M6x1.0 | M5 | 10 | 25 | Čas dobave 3 - 5 dni | 37,38 € | | |
| 155850RIE | M12x1.75 | G 1/8 | 10 | 80 | Čas dobave 3 - 5 dni | 107,32 € | | |
| 155827RIE | M6x1.0 | M5 | 20 | 25 | Čas dobave 3 - 5 dni | 39,12 € | | |
| 155853RIE | M12x1.75 | G 1/8 | 25 | 80 | Čas dobave 3 - 5 dni | 111,26 € | | |
| 155858RIE | M12x1.75 | G 1/8 | 25 | 100 | Čas dobave 3 - 5 dni | 140,98 € | | |
| 155830RIE | M8x1.25 | G 1/8 | 10 | 32 | Čas dobave 3 - 5 dni | 40,86 € | | |
| 155857RIE | M12x1.75 | G 1/8 | 20 | 100 | Čas dobave 3 - 5 dni | 139,25 € | | |
| 155838RIE | M8x1.25 | G 1/8 | 25 | 40 | Čas dobave 3 - 5 dni | 50,06 € | | |
| 155844RIE | M10x1.5 | G 1/8 | 5 | 63 | Čas dobave 3 - 5 dni | 70,41 € | | |
| 155849RIE | M12x1.75 | G 1/8 | 5 | 80 | Čas dobave 3 - 5 dni | 106,09 € | | |
| 155828RIE | M6x1.0 | M5 | 25 | 25 | Čas dobave 3 - 5 dni | 39,58 € | | |
| 155833RIE | M8x1.25 | G 1/8 | 25 | 32 | Čas dobave 3 - 5 dni | 43,18 € | | |
| 155856RIE | M12x1.75 | G 1/8 | 15 | 100 | Čas dobave 3 - 5 dni | 137,53 € | | |
| 155855RIE | M12x1.75 | G 1/8 | 10 | 100 | Čas dobave 3 - 5 dni | 135,83 € | | |
| 155848RIE | M10x1.5 | G 1/8 | 25 | 63 | Čas dobave 3 - 5 dni | 74,80 € | | |
| 155824RIE | M6x1.0 | M5 | 5 | 25 | Čas dobave 3 - 5 dni | 36,91 € | | |
| 155819RIE | M6x1.0 | M5 | 5 | 20 | Čas dobave 3 - 5 dni | 33,32 € | | |
| 155812RIE | M3x0.5 | M5 | 5 | 12 | Čas dobave 3 - 5 dni | 31,46 € | | |
| 155839RIE | M10x1.5 | G 1/8 | 5 | 50 | Čas dobave 3 - 5 dni | 55,40 € | | |
| 155813RIE | M3x0.5 | M5 | 10 | 12 | Čas dobave 3 - 5 dni | 31,59 € | | |
| 155834RIE | M8x1.25 | G 1/8 | 5 | 40 | Čas dobave 3 - 5 dni | 47,25 € | | |
| 155835RIE | M8x1.25 | G 1/8 | 10 | 40 | Čas dobave 3 - 5 dni | 47,87 € | | |
| 155841RIE | M10x1.5 | G 1/8 | 15 | 50 | Čas dobave 3 - 5 dni | 57,26 € | | |
| 155854RIE | M12x1.75 | G 1/8 | 5 | 100 | Čas dobave 3 - 5 dni | 134,10 € | | |
| 155836RIE | M8x1.25 | G 1/8 | 15 | 40 | Čas dobave 3 - 5 dni | 48,50 € | | |
| 155822RIE | M6x1.0 | M5 | 20 | 20 | Čas dobave 3 - 5 dni | 34,59 € | | |
| 155829RIE | M8x1.25 | G 1/8 | 5 | 32 | Čas dobave 3 - 5 dni | 40,38 € | | |
| 155845RIE | M10x1.5 | G 1/8 | 10 | 63 | Čas dobave 3 - 5 dni | 71,68 € | | |
| 155816RIE | M4x0.7 | M5 | 15 | 16 | Čas dobave 3 - 5 dni | 32,57 € | | |
| 155832RIE | M8x1.25 | G 1/8 | 20 | 32 | Čas dobave 3 - 5 dni | 42,54 € | |
Opis
Compact cyl.ISO 21287,single-acting,female piston rod,retr.,magnet,PistonØ32,Stroke20,G1/8,Work.press.max.10bar,Temp.-20°C to 70°C
Series acc. to ISO 21287 characterised by a very short and compact design.
The standard type features a magnetic piston.
Piston rod optionally with male or female thread.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |

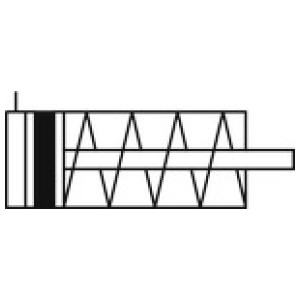

| Ffunkcija | single-acting |
| Serija | ASE series |
| Starting position | pressureless in the retracted position |
| Standard | acc. to ISO 21287 |
| Gewinde Kolbenstange | female piston rod |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR |
| Ovoj | Anodised aluminium jacket with T-slots |
| Bat Ø [mm] | 32 |
| Stroke [mm] | 20 |
| Povezava | G 1/8 |
| Batnica | S45C steel, hard chrome-plated |
| Batnica IT | M8x1.25 |
| Bat | Aluminium |
