Kont. ventil, (vhodni) - z navojem (izhodni), G 1/4, 6

SKU: 106816RIE
EAN: 4047322089357

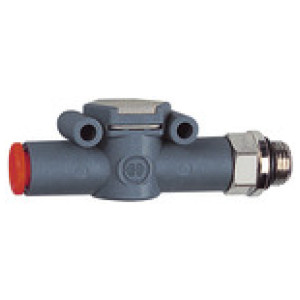

Check valve »lineonline«, Hose (inlet) - thread (outlet), G 1/4, for hose Ø 6 mm, Operating pressure 0.5 to 12 bar

These valves ensure that compressed air only flows in one

(i.e. the desired) direction. The valve closes when inlet pressure is lost and maintains the working pressure that is present downstream.

Čas dobave 3 - 5 dni
16,97 €
Primerjaj z ostalimi

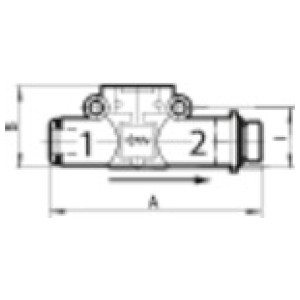

Šifra Navoj Za cevi Ø [mm] I [mm] B [mm] A [mm] Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] Zaloga Cena Nakup Natisni
106818RIE G 3/8 8 18.7 26.0 72.4 480
Čas dobave 3 - 5 dni
19,03 € Natisni
106812RIE M5 4 12.8 17.5 47.7 80
Čas dobave 3 - 5 dni
15,34 € Natisni
106814RIE G 1/8 6 14.6 20.0 58.3 320
Čas dobave 3 - 5 dni
16,82 € Natisni
106813RIE G 1/8 4 12.8 17.5 50.6 80
Čas dobave 3 - 5 dni
16,03 € Natisni
106817RIE G 1/4 8 18.7 26.0 70.8 480
Čas dobave 3 - 5 dni
17,47 € Natisni
106816RIE G 1/4 6 14.6 20.0 61.3 320
Čas dobave 3 - 5 dni
16,97 € Natisni
106815RIE G 1/8 8 18.7 26.0 66.4 480
Čas dobave 3 - 5 dni
17,29 € Natisni

Opis

Check valve »lineonline«, Hose (inlet) - thread (outlet), G 1/4, for hose Ø 6 mm, Operating pressure 0.5 to 12 bar

These valves ensure that compressed air only flows in one

(i.e. the desired) direction. The valve closes when inlet pressure is lost and maintains the working pressure that is present downstream.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Min. obratovalni tlak [bar] 0.5
Max. obratovalni tlak [bar] 12
Max. temperaturno območje [°C] 60
Tesnilo NBR
Telo Technopolymer
Notranji deli Nickel-plated brass, brass, technopolymer, stainless steel

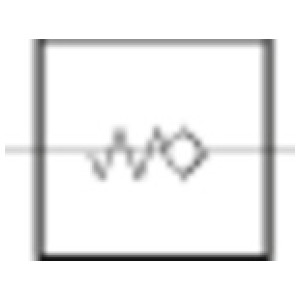

Pnevmatski simboli On housing
Navoj G 1/4
Za cevi Ø [mm] 6
A [mm] 61.3
B [mm] 20.0
I [mm] 14.6
Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] 320
