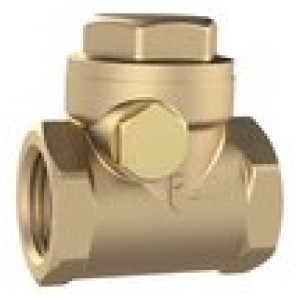

Kontrolni ventil, DN 15, medenina, G 1/2, PN max. 16 bar
SKU: 158064RIE
EAN: 4047322631488
Check valve, DN 15, Brass, Metallic sealing, Operating temperature 0 °C to 90 °C, G 1/2, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Opis
Check valve, DN 15, Brass, Metallic sealing, Operating temperature 0 °C to 90 °C, G 1/2, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Tehnični podatki in specifikacije
Ventilski disk | Brass |
Max. obratovalni tlak [bar] | 16 |
Ohišje | Brass |
Max. delovna temperatura [°C] | 90 |

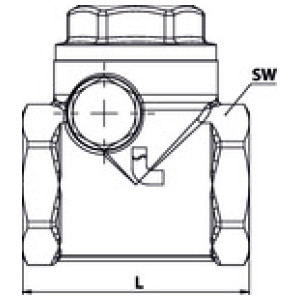

Dolžina [mm] | 43.0 |
DN | 15 |
Standardni navoj | G-thread acc. to DIN EN ISO 228-1 |
Navoj | G 1/2 |
a/f [mm] | 27 |
