Kontrolni ventil, lahka izvedba, nerjavno jeklo, G 1 1/2
SKU: 103855RIE
EAN: 4047322382571
Check valve, Lightweight construction, Stainless steel 1.4301, Operating temperature -20 °C to 150 °C, G 1 1/2, PN max. 16 bar
Stainless steel check valve with full bore and very low opening pressure, no maintenance required.
Applications: Compressed air, water, neutral gases, gaseous and liquid non-corrosive media, oils.
Opis
Check valve, Lightweight construction, Stainless steel 1.4301, Operating temperature -20 °C to 150 °C, G 1 1/2, PN max. 16 bar
Stainless steel check valve with full bore and very low opening pressure, no maintenance required.
Applications: Compressed air, water, neutral gases, gaseous and liquid non-corrosive media, oils.
Tehnični podatki in specifikacije
Ohišje | Stainless steel 1.4301 |
Max. obratovalni tlak [bar] | 16 |
Min. tlak odpiranja [bar] | 0.03 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Tesnilo | FKM |
Vzmet | Stainless steel 1.4301 |
Navoj | G 1 1/2 |

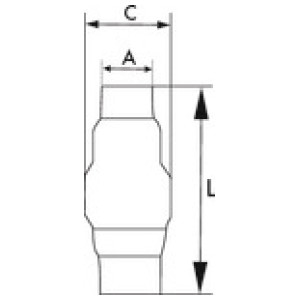

L [mm] | 114.0 |
C [mm] | 78.0 |
A [mm] | 51.0 |
