* slike so simbolične

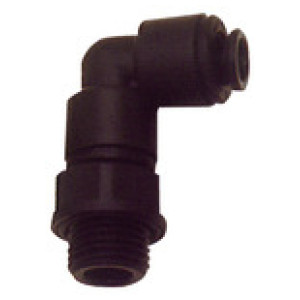

Kot.vijačni prik. POM, G 1/8 , zun. premera 4 mm
SKU: 135956RIE
EAN: 4047322500760
Angled screw-in fitting POM, G 1/8 o., for hose exterior Ø 4 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Šifra | Navoj | Max. delovni tlak [bar] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
110297RIE | G 3/8 | 10 | 15 | 22 | 50.6 | 76.8 | Čas dobave: Predvidoma 3 - 5 dni | 14,38 € | | |
135961RIE | G 3/4 | 10 | 22 | 37 | 66.0 | 117.4 | Čas dobave: Predvidoma 3 - 5 dni | 16,49 € | | |
110301RIE | G 1/2 | 10 | 18 | 27 | 59.7 | 92.2 | Čas dobave: Predvidoma 3 - 5 dni | 14,57 € | | |
110293RIE | G 1/4 | 10 | 10 | 20 | 35.0 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
110298RIE | G 1/2 | 10 | 10 | 27 | 35.0 | 54.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,94 € | | |
110294RIE | G 3/8 | 16 | 8 | 22 | 30.0 | 46.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,86 € | | |
110292RIE | G 1/4 | 16 | 8 | 17 | 30.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,03 € | | |
110300RIE | G 1/2 | 10 | 15 | 27 | 50.6 | 79.8 | Čas dobave: Predvidoma 3 - 5 dni | 13,27 € | | |
110291RIE | G 1/4 | 16 | 6 | 17 | 27.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,12 € | | |
135960RIE | G 1/2 | 10 | 22 | 27 | 66.0 | 94.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,79 € | | |
110296RIE | G 3/8 | 10 | 12 | 24 | 44.0 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,25 € | | |
135958RIE | G 1/4 | 16 | 4 | 17 | 24.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,15 € | | |
110289RIE | G 1/8 | 16 | 6 | 15 | 27.0 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,09 € | | |
110299RIE | G 1/2 | 10 | 12 | 27 | 44.0 | 62.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,92 € | | |
135959RIE | G 1/4 | 16 | 5 | 17 | 24.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,58 € | | |
110295RIE | G 3/8 | 10 | 10 | 22 | 35.0 | 46.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,49 € | | |
135957RIE | G 1/8 | 16 | 5 | 17 | 24.0 | 39.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,05 € | | |
110290RIE | G 1/8 | 16 | 8 | 17 | 30.0 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,03 € | | |
135956RIE | G 1/8 | 16 | 4 | 14 | 24.0 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,37 € | |
Opis
Angled screw-in fitting POM, G 1/8 o., for hose exterior Ø 4 mm, working pressure -0.95 to 16 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura v zraku [°C] | -20 |
Max. delovna temperatura v zraku [°C] | 65 |
Min. delovna temperatura v vodi [°C] | 1 |
Max. delovna temperatura v vodi [°C] | 70 |
Navoj | G 1/8 |
Za cevi O.D. [mm] | 4 |

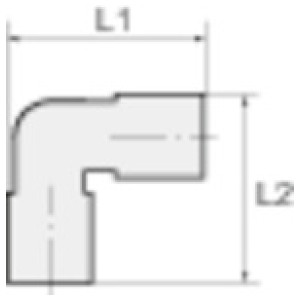

L1 [mm] | 24.0 |
L2 [mm] | 35.5 |
a/f [mm] | 14 |
Material | Acetal polymer (POM) |
