* slike so simbolične
Kotni navojni priključek M, G 3/8 o., za za cev 4/6 mm, PP
SKU: 110872RIE
EAN: 4047322028004

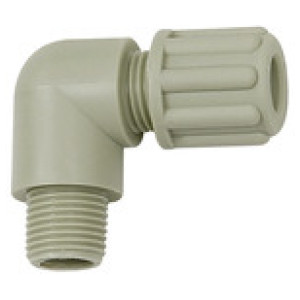

Angled screw-in fitting, G 3/8 o., for hose 4/6 mm, Working pressure max. 10 bar (20 °C)/max. 2.5 bar (90 °C), PP
Chemically resistant to almost all inorganic acids and bases, even in high concentrations and at temperatures greater than 90 °C.
Opis
Angled screw-in fitting, G 3/8 o., for hose 4/6 mm, Working pressure max. 10 bar (20 °C)/max. 2.5 bar (90 °C), PP
Chemically resistant to almost all inorganic acids and bases, even in high concentrations and at temperatures greater than 90 °C.
Tehnični podatki in specifikacije
Max. delovni tlak pri 20 ° C [bar] | 10 |
Max. delovna temperatura [°C] | 90 |
Max. delovni tlak pri 90 ° C [bar] | 2.5 |
Navoj | G 3/8 |
Za cevi [mm] | 4/6 |

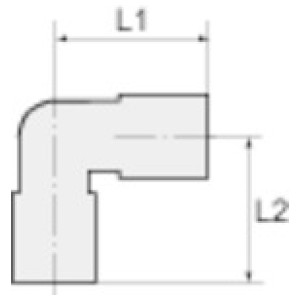

L1 [mm] | 29.0 |
L2 [mm] | 30.0 |
Material | Polypropylene (PP) |
