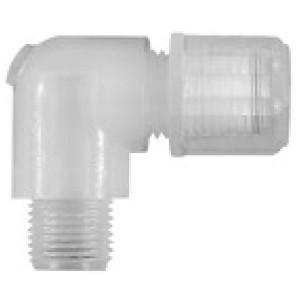

Kotni navojni priključek M G 3/8 o., za za cev 8/10 mm, PFA
SKU: 110923RIE
EAN: 4047322392921
Angled screw-in fitting G 3/8 o., for hose 8/10 mm, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Opis
Angled screw-in fitting G 3/8 o., for hose 8/10 mm, Working pressure max. 10 bar (20 °C)/max. 1 bar (170 °C), PFA
Perfluoroalkoxy alkane (PFA): A fluoroplastic with the same chemical resistance as PTFE but much stronger and suitable for temperatures up to 200°C.
Tehnični podatki in specifikacije
Max. delovni tlak pri 20 ° C [bar] | 10 |
Max. delovna temperatura [°C] | 200 |
Max. delovni tlak od 170 ° C [bar] | 1 |
Navoj | G 3/8 |
Za cevi [mm] | 8/10 |

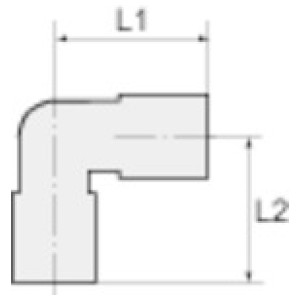

L1 [mm] | 36.0 |
L2 [mm] | 29.0 |
Material | Perfluoroalkoxy alkane (PFA) |
