Kotni navojni priključek, R 1/8 o., za za cev 8/6 mm, AF 14/10
SKU: 110703RIE
EAN: 4047322269285

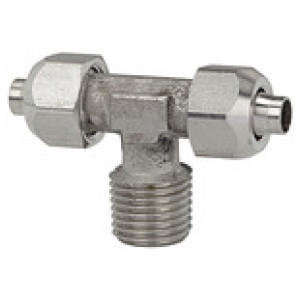

T screw-in fitting, R 1/8 o., for hose 8/6 mm, AF 14/10, Pressure range max. 25 bar, Temp. -40 °C to 200 °C Stainless steel 1.4404
Supplied without seals. For use with corrosive media and at high temperatures.
Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.
The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.
| Šifra | Navoj | Za cevi [mm] | a/f 2 [mm] | a/f 1 [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 110703RIE | R 1/8 | 8/6 | 10 | 14 | 17.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 49,09 € |  | |
| 110705RIE | R 1/4 | 8/6 | 10 | 14 | 21.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 49,09 € | | |
| 110702RIE | R 1/8 | 6/4 | 10 | 12 | 17.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,70 € | | |
| 110704RIE | R 1/4 | 6/4 | 10 | 12 | 21.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,70 € | | |
| 110706RIE | R 1/4 | 10/8 | 12 | 16 | 21.5 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 63,85 € | |
Opis
T screw-in fitting, R 1/8 o., for hose 8/6 mm, AF 14/10, Pressure range max. 25 bar, Temp. -40 °C to 200 °C Stainless steel 1.4404
Supplied without seals. For use with corrosive media and at high temperatures.
Screw fitting series made of stainless steel for all applications where compliance with strict tightness, pressure and temperature requirements is essential.
The parts are manufactured without rubber seals, in other words they are ideal for very high temperatures or for use with corrosive liquids, e.g. in cases when FPM is no longer suitable.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -40 |
| Max. delovni tlak [bar] | 25 |
| Max. temperaturno območje [°C] | 200 |
| Material | Stainless steel 1.4404 |
| Tesnilo | Pure metal |
| Priporočena cev | PTFE hose |
| Navoj | R 1/8 |
| Za cevi [mm] | 8/6 |
| L1 [mm] | 46.0 |
| L2 [mm] | 17.0 |
| a/f 1 [mm] | 14 |
| a/f 2 [mm] | 10 |
