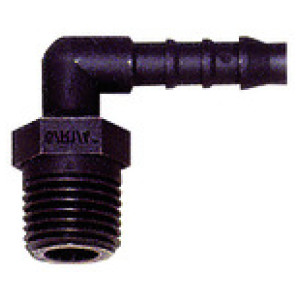

Kotni navojni tulec M, R 3/4 o., za za cev I.D. 19 mm, PA 6
SKU: 110983RIE
EAN: 4047322385213
Angled screw-in supports, R 3/4 o., for hose I.D. 19 mm, AF 27, Over-pressure max. 10 bar, Temperature range -40 °C to 90 °C, PA 6
Lightweight tube connectors distinguished by high strength, toughness, resistance to abrasion and impact resistance.
Opis
Angled screw-in supports, R 3/4 o., for hose I.D. 19 mm, AF 27, Over-pressure max. 10 bar, Temperature range -40 °C to 90 °C, PA 6
Lightweight tube connectors distinguished by high strength, toughness, resistance to abrasion and impact resistance.
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -40 |
Max. temperaturno območje [°C] | 90 |
Max. dovoljeni tlak [bar] | 10 |
Material | Polyamide (PA 6) |
Navoj | R 3/4 |
Za cevi [mm] | I.D. 19 |
L1 [mm] | 42.8 |
L2 [mm] | 45.5 |
a/f [mm] | 27 |
