* slike so simbolične
Kotni prik. value line, vrt., G 1/8 , za zun. Ø 4
SKU: 116278RIE
EAN: 4047322183901

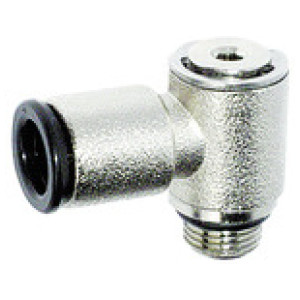

Angled pivot fitting »value line« rotating, G 1/8 o., for hose exterior Ø 4, Working pressure -0.98 to 16 bar,nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Šifra | Navoj | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
116275RIE | M5 | 4 | 17.0 | 18.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,10 € | | |
116280RIE | G 1/8 | 8 | 25.0 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,03 € | | |
116276RIE | G 1/4 | 6 | 29.3 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,30 € | | |
116279RIE | G 1/8 | 6 | 25.0 | 23.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,87 € | | |
116277RIE | G 1/4 | 8 | 29.3 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,30 € | | |
116278RIE | G 1/8 | 4 | 25.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,77 € | |
Opis
Angled pivot fitting »value line« rotating, G 1/8 o., for hose exterior Ø 4, Working pressure -0.98 to 16 bar,nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
Serija | value line |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Tesnilo | NBR, silicone-free |
Priporočena cev | PA, PU |
Vpenjalo | Stainless steel AISI 316 |
Rokav | Hostaform |
Navoj | G 1/8 |
Za cevi O.D. [mm] | 4 |
L1 [mm] | 21.0 |
L2 [mm] | 25.0 |
Material | Nickel-plated brass |
