* slike so simbolične

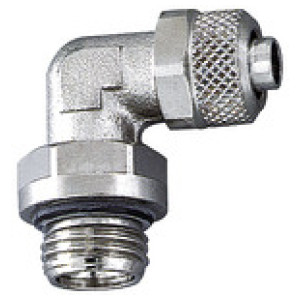

Kotni prik. z navojem, vrt. , G 1/4 , za 10/8 mm
SKU: 110549RIE
EAN: 4047322024457
Angled screw-in fitting, rotating, with O-ring, G 1/4 o., for hose 10/8 mm, Working pressure max. 18 bar, nickel-plated brass
Čas dobave 3 - 5 dni
5,93 €
| Šifra | Navoj | O-tesnilo | Za cevi [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Max. delovna temperatura [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 110549RIE | G 1/4 | NBR, swivel type | 10/8 | 16 | 24.0 | 24.0 | 80 | Čas dobave 3 - 5 dni | 5,93 € |  | |
| 110547RIE | G 1/4 | NBR, swivel type | 6/4 | 16 | 21.5 | 22.5 | 80 | Čas dobave 3 - 5 dni | 4,90 € | | |
| 110544RIE | M5 | Without, non swivel type | 5/3 | 8 | 21.5 | 15.0 | 3000 | Čas dobave 3 - 5 dni | 2,44 € | | |
| 110546RIE | G 1/8 | NBR, swivel type | 8/6 | 13 | 21.0 | 21.0 | 80 | Čas dobave 3 - 5 dni | 4,76 € | | |
| 110548RIE | G 1/4 | NBR, swivel type | 8/6 | 16 | 22.0 | 24.0 | 80 | Čas dobave 3 - 5 dni | 5,06 € | | |
| 110545RIE | G 1/8 | NBR, swivel type | 6/4 | 13 | 20.5 | 21.0 | 80 | Čas dobave 3 - 5 dni | 3,93 € | |
Opis
Angled screw-in fitting, rotating, with O-ring, G 1/4 o., for hose 10/8 mm, Working pressure max. 18 bar, nickel-plated brass
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Max. delovni tlak [bar] | 18 |
| Material | Nickel-plated brass |
| Navoj | G 1/4 |
| Za cevi [mm] | 10/8 |

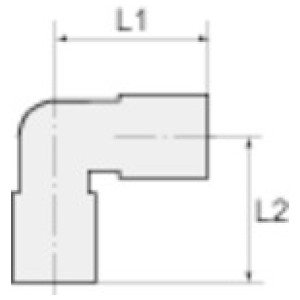

| L1 [mm] | 24.0 |
| L2 [mm] | 24.0 |
| a/f [mm] | 16 |
| O-tesnilo | NBR, swivel type |
