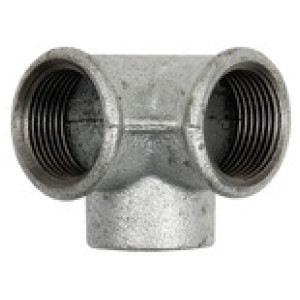

Kotni razdelilniki z N.N. 221, N.N./N.N./N.N.Rp 2
SKU: 113023RIE
EAN: 4047322395786
Angled distributor 221, IT/IT/IT, Rp 2, Operating temp. -20 °C to 300 °C, black malleable cast iron, Hot-dip galvanised
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Obrestno financiranje
- 10,44 € x 6 mesecev
- 20,64 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
113019RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 6,53 € | ||
113022RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 37,00 € | ||
113020RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 10,48 € | ||
113021RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 14,41 € | ||
113023RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 56,99 € |
Opis
Angled distributor 221, IT/IT/IT, Rp 2, Operating temp. -20 °C to 300 °C, black malleable cast iron, Hot-dip galvanised
"Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
Min. temperaturno območje [°C] | -20 |
Max. temperaturno območje [°C] | 300 |
Material | Black malleable iron B350-10, design symbol A |
Površina | Hot dip galvanised |
Navoj | Rp 2 |
Standardni navoj | acc. ISO 7-1 |
