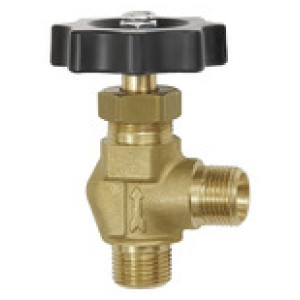

Kotni zapiralni ventil, medenina, ET, G 3/8, DN 8
SKU: 103722RIE
EAN: 4047322034395
Corner blocking valve, Brass, ET, interior cone for cone connector, Operating temp. -10 °C to 80 °C, G 3/8, DN 8, PN max. 40 bar
Čas dobave 3 - 5 dni
22,19 €
| Šifra | Navoj | DN | a/f [mm] | L2 [mm] | H [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103721RIE | G 1/4 | 5.5 | 22 | 25.0 | 53.0 | Čas dobave 3 - 5 dni | 22,19 € |  | |
| 103722RIE | G 3/8 | 8 | 19 | 22.5 | 55.0 | Čas dobave 3 - 5 dni | 22,19 € | |
Opis
Corner blocking valve, Brass, ET, interior cone for cone connector, Operating temp. -10 °C to 80 °C, G 3/8, DN 8, PN max. 40 bar
Tehnični podatki in specifikacije
| Material | Brass |
| Max. obratovalni tlak [bar] | 40 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 80 |
| Steblo | With stainless steel ball |
| Kolo | Plastic |

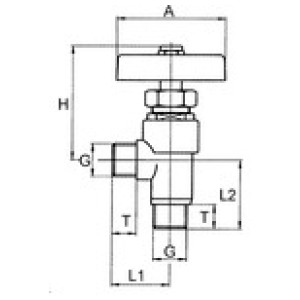

| A [mm] | 48.0 |
| Navoj | G 3/8 |
| DN | 8 |
| a/f [mm] | 19 |
| L1 [mm] | 29.0 |
| L2 [mm] | 22.5 |
| H [mm] | 55.0 |
| T [mm] | 11.0 |
