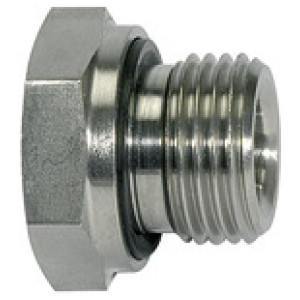

Kratki rdečucir, G 3/4 o., G 1/4 i., nerjavno jeklo 1.4571
SKU: 112308RIE
EAN: 4047322127622
Short reducer, Soft seal, G 3/4 o., G 1/4 i., PN max. 315 bar, Stainless steel 1.4571
Version with parallel thread and soft seal made of NBR.
Čas dobave: Predvidoma 3 - 5 dni
36,14 €

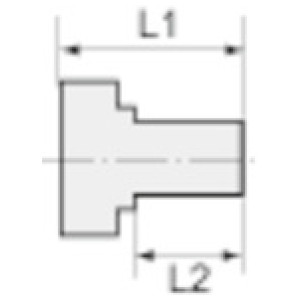

| Šifra | Notranji navoj | Zunanji navoj | L2 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 112306RIE | G 1/8 | G 3/8 | 12.0 | 22.5 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 26,56 € |  | |
| 112310RIE | G 1/2 | G 1 | 18.0 | 29.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 48,60 € | | |
| 112309RIE | G 3/8 | G 3/4 | 16.0 | 26.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 32,72 € | | |
| 112307RIE | G 1/4 | G 1/2 | 14.0 | 24.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 29,18 € | | |
| 112308RIE | G 1/4 | G 3/4 | 16.0 | 26.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 36,14 € | |
Opis
Short reducer, Soft seal, G 3/4 o., G 1/4 i., PN max. 315 bar, Stainless steel 1.4571
Version with parallel thread and soft seal made of NBR.
Tehnični podatki in specifikacije
| Material | Stainless steel 1.4571 (DIN 2353) |
| L1 [mm] | 26.0 |
| L2 [mm] | 16.0 |
| PN [bar] | 315 |
| Zunanji navoj | G 3/4 |
| Notranji navoj | G 1/4 |
