* slike so simbolične
krog. ventil med., pnevm. vklop enojno delovanje, 1/2
SKU: 103572RIE
EAN: 4047322078740
Brass ball valve, Pneumat. actuation drive, single-acting, Operating temperature -20 °C to 150 °C, Rp 1/2, DN 15, PN max. 16 bar
Ball valves with pneumatic actuator.
Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Čas dobave 3 - 5 dni
Povpraševanje
krog. ventil med., pnevm. vklop enojno delovanje, 1/2
Adapter ventila: Supplied as standard
Material krogelnega ventila: Nickel-plated brass, with ISO flange plate
Navoj: Rp 1/2
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: single-acting - spring to close
B [mm]: 110.0
A [mm]: 221.0
Material krogelnega ventila: Nickel-plated brass, with ISO flange plate
Navoj: Rp 1/2
Pogonski material: Anodised aluminium
Premaz za krogelni ventil: PTFE / FKM
Različica: single-acting - spring to close
B [mm]: 110.0
A [mm]: 221.0

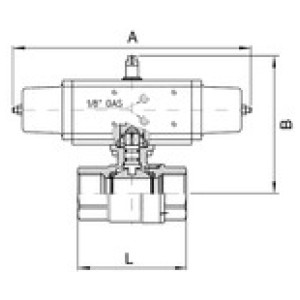

| Šifra | Navoj | DN | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103575RIE | Rp 1 1/4 | 32 | 103.0 | 131.0 | 221.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 103571RIE | Rp 3/8 | 10 | 69.0 | 110.0 | 221.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103574RIE | Rp 1 | 25 | 89.0 | 121.0 | 221.0 | Čas dobave 3 - 5 dni | 300,07 € | | |
| 103576RIE | Rp 1 1/2 | 40 | 114.0 | 137.0 | 221.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103573RIE | Rp 3/4 | 20 | 77.0 | 117.0 | 221.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103572RIE | Rp 1/2 | 15 | 69.0 | 110.0 | 221.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 103577RIE | Rp 2 | 50 | 134.0 | 155.0 | 240.0 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Brass ball valve, Pneumat. actuation drive, single-acting, Operating temperature -20 °C to 150 °C, Rp 1/2, DN 15, PN max. 16 bar
Ball valves with pneumatic actuator.
Pneumatic, double-piston, part-turn actuator, double-rocker principle.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Material krogelnega ventila | Nickel-plated brass, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Max. vodeni tlak [bar] | 5.6 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard |
| Navoj | Rp 1/2 |
| DN | 15 |
| Različica | single-acting - spring to close |
| B [mm] | 110.0 |
| L [mm] | 69.0 |
| A [mm] | 221.0 |
