* slike so simbolične
krog. ventil med., pnevm. vklop vzmetni preklop, 1 1/2
SKU: 103536RIE
EAN: 4047322076050

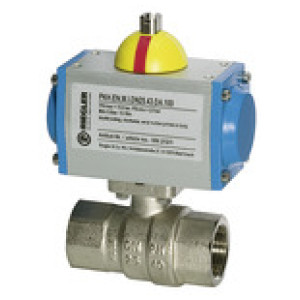

2-way brass ball valve Pneumat. actuation drive spring switching, Operating temp. max. 70°C, Rp 1 1/2, DN 40, PN max. 25 bar
2-way cock, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Čas dobave: Predvidoma 3 - 5 dni
476,21 €
ali od 12,67 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,67 € x 48 mesecev
- 16,20 € x 36 mesecev
- 23,27 € x 24 mesecev
- 44,54 € x 12 mesecev
- 87,13 € x 6 mesecev
- 172,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

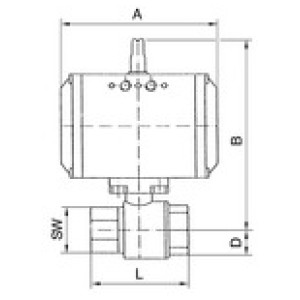

| Šifra | Navoj | PN [bar] | D [mm] | DN | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103538RIE | Rp 2 1/2 | 25 | 57.0 | 65 | 83 | 155.0 | 209.0 | 230.0 | Čas dobave: Predvidoma 3 - 5 dni | 845,34 € |  | |
| 103535RIE | Rp 1 1/4 | 40 | 30.0 | 32 | 50 | 110.0 | 137.0 | 173.0 | Čas dobave: Predvidoma 3 - 5 dni | 449,50 € | | |
| 103533RIE | Rp 3/4 | 40 | 20.0 | 20 | 32 | 80.0 | 133.0 | 145.0 | Čas dobave: Predvidoma 3 - 5 dni | 408,97 € | | |
| 103537RIE | Rp 2 | 25 | 45.0 | 50 | 70 | 140.0 | 180.0 | 203.0 | Čas dobave: Predvidoma 3 - 5 dni | 603,11 € | | |
| 103539RIE | Rp 3 | 16 | 68.0 | 80 | 98 | 182.0 | 209.0 | 242.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.125,83 € | | |
| 103532RIE | Rp 1/2 | 40 | 17.0 | 15 | 26 | 75.0 | 133.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | 404,11 € | | |
| 103534RIE | Rp 1 | 40 | 25.0 | 25 | 41 | 90.0 | 133.0 | 148.0 | Čas dobave: Predvidoma 3 - 5 dni | 397,66 € | | |
| 103536RIE | Rp 1 1/2 | 25 | 36.0 | 40 | 55 | 120.0 | 137.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 476,21 € | |
Opis
2-way brass ball valve Pneumat. actuation drive spring switching, Operating temp. max. 70°C, Rp 1 1/2, DN 40, PN max. 25 bar
2-way cock, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Nickel-plated brass, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard |
| Navoj | Rp 1 1/2 |
| DN | 40 |
| Različica | single-acting - spring to close |
| B [mm] | 180.0 |
| L [mm] | 120.0 |
| A [mm] | 137.0 |
| D [mm] | 36.0 |
| a/f [mm] | 55 |
| PN [bar] | 25 |
