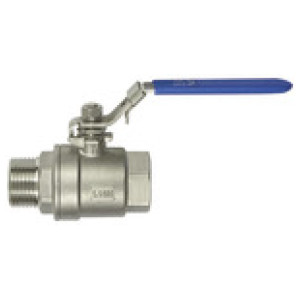

krog. ventil ner.jeklo, 2-delno, IT/ET z navojem, G1/4, DN8
SKU: 135902RIE
EAN: 4047322501446
Stainless steel ball valve, 2-piece, IT/ET thread, G 1/4, DN 8, Operating temperature -20 °C to 180 °C, PN max. 63 bar
Čas dobave: Predvidoma 3 - 5 dni
38,39 €

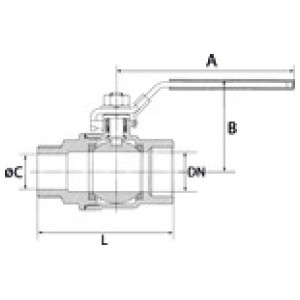

| Šifra | Navoj | C Ø [mm] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 135905RIE | G 3/4 | 20.0 | 20 | 67.5 | 75.0 | 115.0 | Čas dobave: Predvidoma 3 - 5 dni | 59,21 € |  | |
| 135903RIE | G 3/8 | 10.0 | 10 | 50.0 | 58.0 | 95.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | | |
| 135909RIE | G 2 | 49.0 | 50 | 111.0 | 123.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 257,99 € | | |
| 135904RIE | G 1/2 | 15.0 | 15 | 61.5 | 68.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,16 € | | |
| 135908RIE | G 1 1/2 | 38.0 | 40 | 103.5 | 112.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 162,49 € | | |
| 135906RIE | G 1 | 25.0 | 25 | 69.0 | 85.0 | 125.0 | Čas dobave: Predvidoma 3 - 5 dni | 83,09 € | | |
| 135907RIE | G 1 1/4 | 32.0 | 32 | 84.5 | 100.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 121,38 € | | |
| 135902RIE | G 1/4 | 10.0 | 8 | 50.0 | 58.0 | 95.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | |
Opis
Stainless steel ball valve, 2-piece, IT/ET thread, G 1/4, DN 8, Operating temperature -20 °C to 180 °C, PN max. 63 bar
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4408 |
| Bore diameter padlock | ca. 6.0 mm |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 180 |
| Krogla | Stainless steel 1.4401 |
| Krogelno tesnilo | PTFE (15 % glass fibre reinforced) |
| Stebelno tesnilo | PTFE |
| Ročica | Stainless steel 1.4301, with plastic coating |
| Navoj | G 1/4 |
| DN | 8 |
| PN [bar] | 63 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 95.0 |
| B [mm] | 50.0 |
| L [mm] | 58.0 |
| C Ø [mm] | 10.0 |
