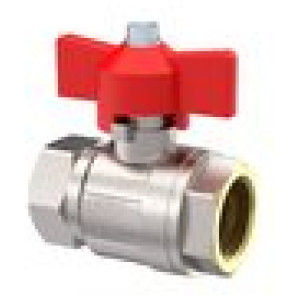

krog. ventil, osnovna obilka, IT/IT, nikljana med., G 1 1/4
SKU: 103116RIE
EAN: 4047322400008
Ball valve, Butterfly handle, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1 1/4, PN max. 30 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Obrestno financiranje
- 19,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

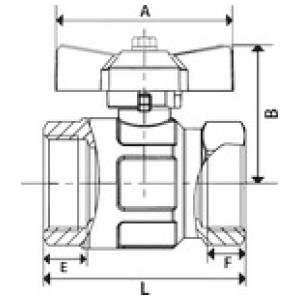

Šifra | Navoj | E [mm] | F [mm] | DN | PN [bar] | B [mm] | A [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
103115RIE | G 1 | 15.0 | 15.0 | 25 | 40 | 59.0 | 62.0 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,70 € | ||
103114RIE | G 3/4 | 13.5 | 12.5 | 20 | 40 | 55.0 | 62.0 | 57.5 | Čas dobave: Predvidoma 3 - 5 dni | 22,33 € | ||
103112RIE | G 3/8 | 10.0 | 10.0 | 10 | 50 | 37.0 | 47.0 | 44.4 | Čas dobave: Predvidoma 3 - 5 dni | 14,88 € | ||
103113RIE | G 1/2 | 12.5 | 12.0 | 15 | 50 | 41.0 | 47.0 | 50.5 | Čas dobave: Predvidoma 3 - 5 dni | 15,98 € | ||
103111RIE | G 1/4 | 10.0 | 10.0 | 8 | 50 | 37.0 | 47.0 | 44.4 | Čas dobave: Predvidoma 3 - 5 dni | 14,70 € | ||
103116RIE | G 1 1/4 | 16.5 | 17.0 | 32 | 30 | 75.0 | 70.0 | 80.5 | Čas dobave: Predvidoma 3 - 5 dni | 52,70 € |
Opis
Ball valve, Butterfly handle, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1 1/4, PN max. 30 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Tehnični podatki in specifikacije
Material | Nickel-plated brass |
Navoj | G 1 1/4 |
Krogla | Chrome-plated brass |
Krogelno tesnilo | PTFE |
Stebelno tesnilo | NBR / FKM (Seal package consists of 2 O-rings) |
PN [bar] | 30 |
Delovna temperatura | -20 °C to 150 °C (no steam) |
Ročica - metuljček | Aluminium, painted red |
Standardni navoj | G-thread acc. to DIN EN ISO 228-1, tolerance class B |
Material navojev | Bright brass |
DN | 32 |
L [mm] | 80.5 |
A [mm] | 70.0 |
B [mm] | 75.0 |
E [mm] | 16.5 |
F [mm] | 17.0 |
