* slike so simbolične

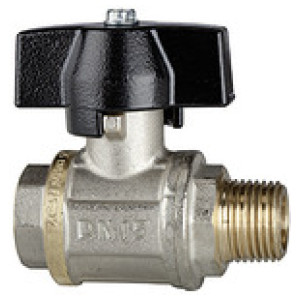

Krog. ventil robustnejša oblika,metuljasta ročica, IT/ET, G/R 1/2
SKU: 103294RIE
EAN: 4047322216364
Ball valve heavy duty design, Butterfly handle, IT/ET, nickel-plated brass, Operating temp. -20°C to 130°C, G/R 1/2, PN max 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Krog. ventil robustnejša oblika,metuljasta ročica, IT/ET, G/R 1/2
Krogla: Chrome-plated brass
Material navojev: Brass with a bare metal surface
Navoj: G/R 1/2
Ohišje: Nickel-plated brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1)
Material navojev: Brass with a bare metal surface
Navoj: G/R 1/2
Ohišje: Nickel-plated brass
Ročica - metuljček: Aluminium, painted black
Standardni navoj: G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1)
Aktivni filtri - 0
| Šifra | Navoj | F [mm] | DN | E [mm] | a/f 1 [mm] | a/f 2 [mm] | A [mm] | B [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103292RIE | G/R 1/4 | 7.0 | 8 | 11.0 | 18 | 18 | 45.0 | 43.0 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103293RIE | G/R 3/8 | 9.0 | 10 | 11.0 | 21 | 21 | 45.0 | 45.5 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103294RIE | G/R 1/2 | 8.0 | 15 | 15.0 | 27 | 26 | 55.0 | 54.5 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103295RIE | G/R 3/4 | 13.0 | 20 | 16.0 | 33 | 32 | 55.0 | 58.5 | 77.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103296RIE | G/R 1 | 14.5 | 25 | 19.0 | 40 | 39 | 70.0 | 70.5 | 88.4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 5 od 5 zapisov
Opis
Ball valve heavy duty design, Butterfly handle, IT/ET, nickel-plated brass, Operating temp. -20°C to 130°C, G/R 1/2, PN max 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 130 |
| Navoj | G/R 1/2 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| PN [bar] | 80 |
| Ročica - metuljček | Aluminium, painted black |
| Standardni navoj | G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1) |
| Material navojev | Brass with a bare metal surface |
| Ohišje | Nickel-plated brass |
| DN | 15 |
| L [mm] | 68.0 |
| A [mm] | 55.0 |
| B [mm] | 54.5 |
| E [mm] | 15.0 |
| F [mm] | 8.0 |
| a/f 1 [mm] | 27 |
| a/f 2 [mm] | 26 |
