* slike so simbolične

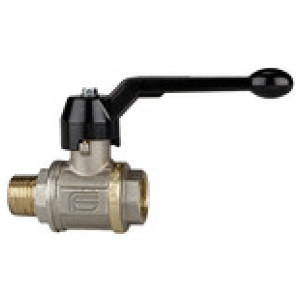

Krog. ventil robustnejša oblika,z ročico, ročni, IT/ET, G/R 1 1/2
SKU: 103277RIE
EAN: 4047322216197
Ball valve heavy duty design, Manual lever, IT/ET, nickel-plated brass, Operating temp. -20°C to 130°C, G/R 1 1/2, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Krog. ventil robustnejša oblika,z ročico, ročni, IT/ET, G/R 1 1/2
Krogla: Chrome-plated brass
Material navojev: Brass with a bare metal surface
Navoj: G/R 1 1/2
Ohišje: Nickel-plated brass
Ročica: Aluminium, painted black
Standardni navoj: G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1)
B [mm]: 103.0
L [mm]: 114.5
A [mm]: 150.0
Material navojev: Brass with a bare metal surface
Navoj: G/R 1 1/2
Ohišje: Nickel-plated brass
Ročica: Aluminium, painted black
Standardni navoj: G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1)
B [mm]: 103.0
L [mm]: 114.5
A [mm]: 150.0

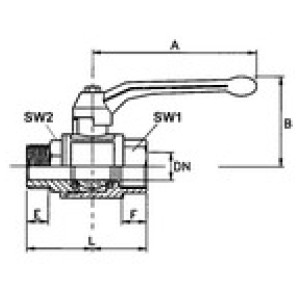

| Šifra | Navoj | F [mm] | E [mm] | DN | a/f 1 [mm] | a/f 2 [mm] | B [mm] | L [mm] | PN [bar] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103273RIE | G/R 1/2 | 8.5 | 14.9 | 15 | 26 | 27 | 64.0 | 68.0 | 80 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103276RIE | G/R 1 1/4 | 16.0 | 21.2 | 32 | 49 | 50 | 95.0 | 100.0 | 80 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103277RIE | G/R 1 1/2 | 18.0 | 21.2 | 40 | 56 | 57 | 103.0 | 114.5 | 80 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103278RIE | G/R 2 | 21.0 | 25.5 | 50 | 69 | 70 | 115.5 | 136.0 | 63 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103272RIE | G/R 3/8 | 8.5 | 11.0 | 10 | 21 | 21 | 54.0 | 56.0 | 80 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103275RIE | G/R 1 | 15.0 | 19.0 | 25 | 39 | 40 | 80.0 | 89.0 | 80 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103274RIE | G/R 3/4 | 14.0 | 16.0 | 20 | 32 | 33 | 68.0 | 77.0 | 80 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103271RIE | G/R 1/4 | 7.0 | 11.0 | 8 | 18 | 18 | 51.5 | 49.0 | 80 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Ball valve heavy duty design, Manual lever, IT/ET, nickel-plated brass, Operating temp. -20°C to 130°C, G/R 1 1/2, PN max. 80 bar
Applications: Compressed air, water, neutral and non-toxic gases, fuel oil (light distillate), fuel oil (heavy), lubricating oils, diesel oils.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 130 |
| Navoj | G/R 1 1/2 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| PN [bar] | 80 |
| Ročica | Aluminium, painted black |
| Standardni navoj | G thread DIN EN ISO 228-1, R thread DIN EN 10226 (ISO 7-1) |
| Material navojev | Brass with a bare metal surface |
| Ohišje | Nickel-plated brass |
| DN | 40 |
| L [mm] | 114.5 |
| A [mm] | 150.0 |
| B [mm] | 103.0 |
| E [mm] | 21.2 |
| F [mm] | 18.0 |
| a/f 1 [mm] | 56 |
| a/f 2 [mm] | 57 |
