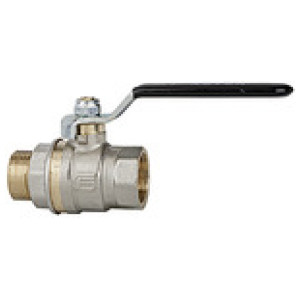

krog. ventil standar.obilka, črna jekl. ročica, IT/ET, G 1/2 slika
krog. ventil standar.obilka, črna jekl. ročica, IT/ET, G 1/2 slika

* slike so simbolične

krog. ventil standar.obilka, črna jekl. ročica, IT/ET, G 1/2

SKU: 103197RIE
EAN: 4047322277938

Ball valve standard design, black steel lever, IT/ET, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/2, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.

Čas dobave 3 - 5 dni
18,36 €
V košarico
Primerjaj z ostalimi

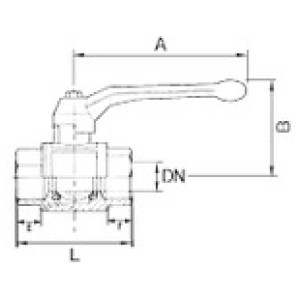

Šifra Navoj E [mm] F [mm] DN PN [bar] B [mm] L [mm] A [mm] Zaloga Cena Nakup Natisni
103200RIE G 1 1/4 13.0 13.5 32 40 63.1 91.5 130.0
Čas dobave 3 - 5 dni
 64,50 €
Natisni
103202RIE G 2 16.5 16.5 50 40 83.4 121.0 165.0
Čas dobave 3 - 5 dni
 147,44 €
Natisni
103195RIE G 1/4 9.4 12.0 8 63 37.2 51.0 85.0
Čas dobave 3 - 5 dni
 18,04 €
Natisni
103198RIE G 3/4 10.5 10.5 20 40 48.4 69.5 105.0
Čas dobave 3 - 5 dni
 27,40 €
Natisni
103196RIE G 3/8 8.6 12.0 10 63 37.2 53.0 85.0
Čas dobave 3 - 5 dni
 18,31 €
Natisni
103197RIE G 1/2 9.5 9.5 15 40 44.1 59.8 85.0
Čas dobave 3 - 5 dni
 18,36 €
Natisni
103199RIE G 1 12.0 12.0 25 40 52.3 78.8 105.0
Čas dobave 3 - 5 dni
 39,92 €
Natisni
103201RIE G 1 1/2 14.5 14.5 40 40 69.1 104.0 130.0
Čas dobave 3 - 5 dni
 97,10 €
Natisni

Opis

Ball valve standard design, black steel lever, IT/ET, nickel-plated brass, Operating temp. -15 °C to 90 °C, G 1/2, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.

Tehnični podatki in specifikacije

Material Nickel-plated brass
Min. delovna temperatura [°C] -15
Max. delovna temperatura [°C] 90
Navoj G 1/2
Krogla Chrome-plated brass
Krogelno tesnilo PTFE
Stebelno tesnilo 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE
PN [bar] 40
Ročica Steel, with plastic coating
Standardni navoj G thread acc. to DIN EN ISO 228-1
Material navojev Brass with a bare metal surface
DN 15
L [mm] 59.8
A [mm] 85.0
B [mm] 44.1
E [mm] 9.5
F [mm] 9.5
