* slike so simbolične

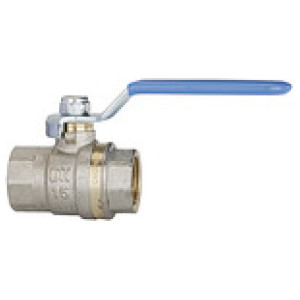

krog. ventil standar.oblika, modra jekl. ročica, IT/IT, G 1 1/4
SKU: 103182RIE
EAN: 4047322277808
Ball valve standard design, blue steel lever, IT/IT, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/4, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Opis
Ball valve standard design, blue steel lever, IT/IT, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/4, PN max. 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
Material | Nickel-plated brass |
Min. delovna temperatura [°C] | -15 |
Max. delovna temperatura [°C] | 90 |
Navoj | G 1 1/4 |
Krogla | Chrome-plated brass |
Krogelno tesnilo | PTFE |
Stebelno tesnilo | 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE |
PN [bar] | 40 |
Ročica | Steel, with plastic coating |
Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
Material navojev | Brass with a bare metal surface |
DN | 32 |
L [mm] | 80.0 |
A [mm] | 130.0 |
B [mm] | 63.1 |
E [mm] | 13.5 |
F [mm] | 13.5 |
