* slike so simbolične

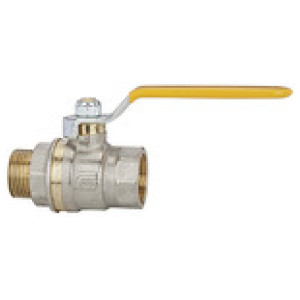

krog. ventil standar.oblika, rumena jekl. ročica, IT/ET, G 1 1/4
SKU: 103224RIE
EAN: 4047322278171
Ball valve standard design, yellow steel lever, IT/ET, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/4, PN max 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
krog. ventil standar.oblika, rumena jekl. ročica, IT/ET, G 1 1/4
Krogla: Chrome-plated brass
Material: Nickel-plated brass
Material navojev: Brass with a bare metal surface
Navoj: G 1 1/4
Ročica: Steel, with plastic coating
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Stebelno tesnilo: 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE
A [mm]: 130.0
Material: Nickel-plated brass
Material navojev: Brass with a bare metal surface
Navoj: G 1 1/4
Ročica: Steel, with plastic coating
Standardni navoj: G thread acc. to DIN EN ISO 228-1
Stebelno tesnilo: 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE
A [mm]: 130.0
Aktivni filtri - 0
| Šifra | Navoj | E [mm] | F [mm] | DN | PN [bar] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103219RIE | G 1/4 | 9.4 | 12.0 | 8 | 63 | 37.2 | 51.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103220RIE | G 3/8 | 8.6 | 12.0 | 10 | 63 | 37.2 | 53.0 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103221RIE | G 1/2 | 9.5 | 9.5 | 15 | 40 | 44.1 | 59.8 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103222RIE | G 3/4 | 10.5 | 10.5 | 20 | 40 | 48.4 | 69.5 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103223RIE | G 1 | 12.0 | 12.0 | 25 | 40 | 52.3 | 78.8 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103224RIE | G 1 1/4 | 13.0 | 13.5 | 32 | 40 | 63.1 | 91.5 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103225RIE | G 1 1/2 | 14.5 | 14.5 | 40 | 40 | 69.1 | 104.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103226RIE | G 2 | 16.5 | 16.5 | 50 | 40 | 83.4 | 121.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 8 od 8 zapisov
Opis
Ball valve standard design, yellow steel lever, IT/ET, nickel-plated brass, Operating temp. -15°C to 90°C, G 1 1/4, PN max 40 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems, agriculture.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 90 |
| Navoj | G 1 1/4 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | 2 O-rings HNBR/EPDM peroxide crosslinked, sealing ring PTFE |
| PN [bar] | 40 |
| Ročica | Steel, with plastic coating |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| Material navojev | Brass with a bare metal surface |
| DN | 32 |
| L [mm] | 91.5 |
| A [mm] | 130.0 |
| B [mm] | 63.1 |
| E [mm] | 13.0 |
| F [mm] | 13.5 |
