* slike so simbolične

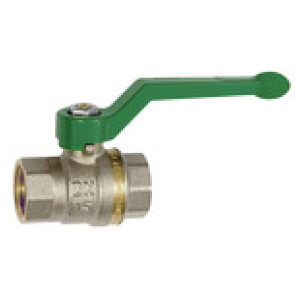

Krog. ventil za vodo,z ročico, ročni, IT/IT, G 3/4, DN 20
SKU: 133164RIE
EAN: 4047322476546
Potable water ball valve, Nickel-plated brass, Manual lever, IT/IT, G 3/4, DN 20, Operating temp. -15 °C to 110 °C, PN max. 40 bar
Brass ball valve with free flow, DVGW approved. This valve complies with the European standard EN 13828 and the working paper DVGW W 570, and is therefore approved for use with drinking water. The special ball technology prevents bacteria from forming inside the valve if it is not in use for a long period of time (i.e. the valve is absolutely safe for drinking water).

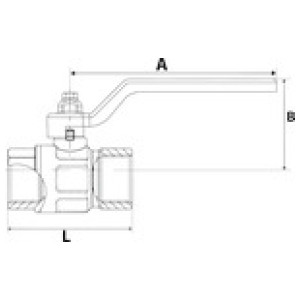

| Šifra | Navoj | DN | B [mm] | L [mm] | PN [bar] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 133162RIE | G 3/8 | 10 | 42.0 | 50.0 | 50 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,83 € |  | |
| 133165RIE | G 1 | 25 | 57.3 | 69.0 | 40 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,10 € | | |
| 133168RIE | G 2 | 50 | 92.4 | 119.0 | 40 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 103,75 € | | |
| 133161RIE | G 1/4 | 8 | 42.0 | 46.0 | 50 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,10 € | | |
| 133167RIE | G 1 1/2 | 40 | 76.1 | 91.5 | 40 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 72,59 € | | |
| 133166RIE | G 1 1/4 | 32 | 70.1 | 80.0 | 40 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 47,60 € | | |
| 133163RIE | G 1/2 | 15 | 45.8 | 50.0 | 40 | 85.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,41 € | | |
| 133164RIE | G 3/4 | 20 | 53.4 | 58.0 | 40 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,03 € | |
Opis
Potable water ball valve, Nickel-plated brass, Manual lever, IT/IT, G 3/4, DN 20, Operating temp. -15 °C to 110 °C, PN max. 40 bar
Brass ball valve with free flow, DVGW approved. This valve complies with the European standard EN 13828 and the working paper DVGW W 570, and is therefore approved for use with drinking water. The special ball technology prevents bacteria from forming inside the valve if it is not in use for a long period of time (i.e. the valve is absolutely safe for drinking water).
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass (outside), brass (inside) |
| Min. delovna temperatura [°C] | -15 |
| Max. delovna temperatura [°C] | 110 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE / EPDM / HNBR |
| DVGW odobritev | DIN EN 13828:2003-12, DVGW W 570 |
| Material navojev | Brass |
| Ročica | Aluminium |
| Aplikacije | Potable water, water |
| Navoj | G 3/4 |
| DN | 20 |
| Standardni navoj | Thread acc. to DIN EN ISO 228-1 |
| L [mm] | 58.0 |
| A [mm] | 105.0 |
| B [mm] | 53.4 |
| PN [bar] | 40 |
