* slike so simbolične

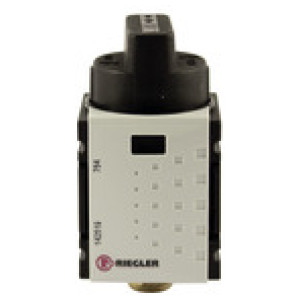

Krogelni ventil 3/2 »FUTURA-mali«, zaklepni, Velikost 0, G 1/4
SKU: 142519RIE
EAN: 4047322557443
Ball valve 3/2-way »FUTURA-mini«, lockable, Size 0, G 1/4, Exhaust G 1/4, Input pressure max. 12 bar, Temperature -10 °C to 50 °C

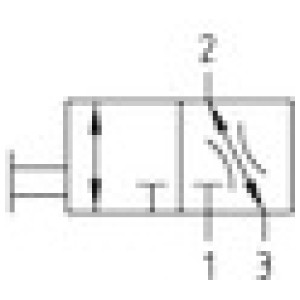

Lockable ball valve, 3/2-way type including silencer, mechanically operated.
Rotary switch can be turned 90º, with indication of positions:
Horizontal: Input closed - outlet exhausted
Vertical: Flow open - exhaust closed
Exhaust air can be collected.
Povpraševanje
Merjenje pretoka: At P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: PA66 GF60
Priključni navoj: Plastic
Serija: FUTURA-mini
Srednje: Compressed air, neutral gases
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 142519RIE | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
Opis
Ball valve 3/2-way »FUTURA-mini«, lockable, Size 0, G 1/4, Exhaust G 1/4, Input pressure max. 12 bar, Temperature -10 °C to 50 °C
Lockable ball valve, 3/2-way type including silencer, mechanically operated.
Rotary switch can be turned 90º, with indication of positions:
Horizontal: Input closed - outlet exhausted
Vertical: Flow open - exhaust closed
Exhaust air can be collected.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 12 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Plastic |
| Pretok [l/min] | 2300 |
| Izpušni zrak | G 1/4 |

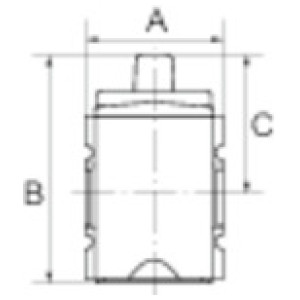

| A [mm] | 43.0 |
| B [mm] | 87.0 |
| C [mm] | 51.0 |
| Serija | FUTURA-mini |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
