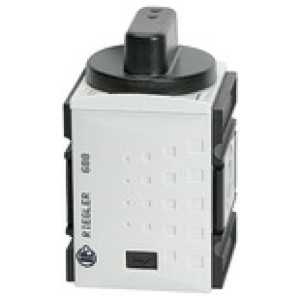

Krogelni ventil 3/2 »FUTURA«, zaklepni, Velikost 2, G 1/2
SKU: 100286RIE
EAN: 4047322214841
Ball valve 3/2-way »FUTURA«, lockable, Size 2, G 1/2, Exhaust G 1/2, Input pressure max. 16 bar, Temperature -10 °C to 50 °C

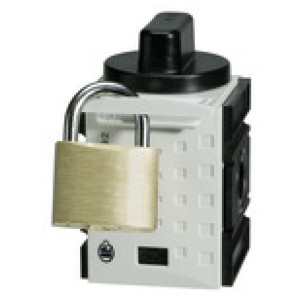

Lockable ball valve, 3/2-way type including silencer, mechanically operated.
Rotary switch can be turned 90º, with indication of positions:
Horizontal: Input closed - outlet exhausted
Vertical: Flow open - exhaust closed
Exhaust air can be collected.
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

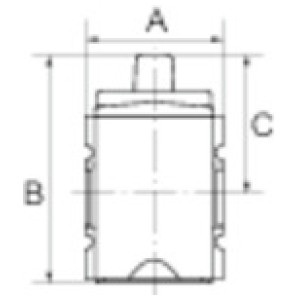

| Šifra | Izpušni zrak | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100283RIE | G 1/4 | G 1/4 | 1 | 52.0 | 54.5 | 87.5 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 43,47 € |  | |
| 100285RIE | G 1/2 | G 3/8 | 2 | 63.0 | 70.5 | 127.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 64,05 € | | |
| 100286RIE | G 1/2 | G 1/2 | 2 | 63.0 | 70.5 | 127.0 | 14000 | Čas dobave: Predvidoma 3 - 5 dni | 64,05 € | | |
| 100287RIE | G 3/4 | G 3/4 | 4 | 85.0 | 93.7 | 144.7 | 25000 | Čas dobave: Predvidoma 3 - 5 dni | 144,50 € | | |
| 100288RIE | G 3/4 | G 1 | 4 | 85.0 | 93.7 | 144.7 | 25000 | Čas dobave: Predvidoma 3 - 5 dni | 144,50 € | | |
| 100284RIE | G 1/4 | G 3/8 | 1 | 52.0 | 54.5 | 87.5 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 43,47 € | |
Opis
Ball valve 3/2-way »FUTURA«, lockable, Size 2, G 1/2, Exhaust G 1/2, Input pressure max. 16 bar, Temperature -10 °C to 50 °C
Lockable ball valve, 3/2-way type including silencer, mechanically operated.
Rotary switch can be turned 90º, with indication of positions:
Horizontal: Input closed - outlet exhausted
Vertical: Flow open - exhaust closed
Exhaust air can be collected.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Pretok [l/min] | 14000 |
| Izpušni zrak | G 1/2 |
| A [mm] | 63.0 |
| B [mm] | 127.0 |
| C [mm] | 70.5 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
