* slike so simbolične

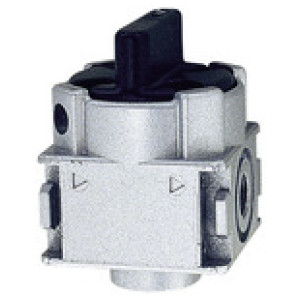

Krogelni ventil 3/2 »multifix-mali«, zaklepni, Velikost 0, G 1/4
SKU: 100404RIE
EAN: 4047322132756

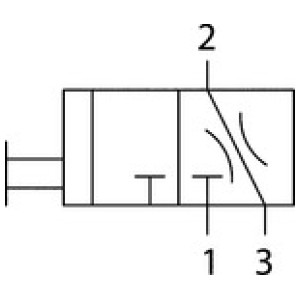

Ball valve 3/2-way »multifix-mini«, lockable, with venting hole, Size 0, G 1/4, Medium / ambient temperature max. 60 °C
Rotary switch can be turned 90°, lockable, with relief port including silencer.
Čas dobave: Predvidoma 3 - 5 dni
37,60 €
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100404RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 37,60 € |  | |
| 100403RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 37,60 € | |
Opis
Ball valve 3/2-way »multifix-mini«, lockable, with venting hole, Size 0, G 1/4, Medium / ambient temperature max. 60 °C
Rotary switch can be turned 90°, lockable, with relief port including silencer.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Delovanje | Twist knob, rotatable 90° |
| Pretok [l/min] | 1800 |
| Odzračevalni vtič | G 1/4 |
| Ohišje | Die-cast zinc |

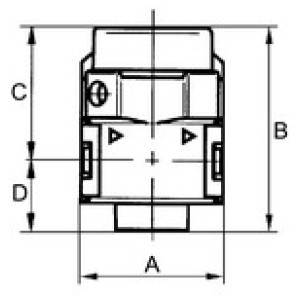

| A [mm] | 40.0 |
| B [mm] | 57.6 |
| C [mm] | 37.6 |
| D [mm] | 20.0 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
