* slike so simbolične

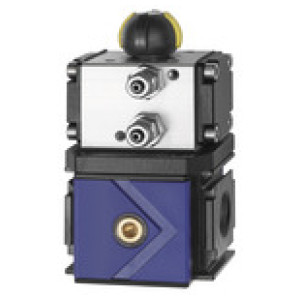

Krogelni ventil 3/2 »variobloc«pnevmatski pogonVel.2,G 1/2
SKU: 158058RIE
EAN: 4047322631730

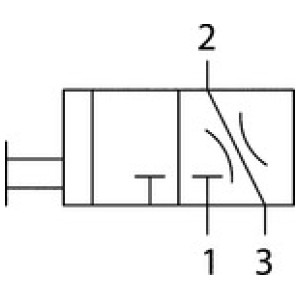

Ball valve 3/2-way »variobloc«, with pneumatic drive, with ventilation and silencer, Size 2, G 1/2, Operating pressure max. 25 bar
Used as the main shut-off element, especially for flanging onto the start of a variobloc service unit.
The variant with pneumatic drive (size 2) allows the use even in poorly accessible areas as a remote control. With pressure relief and silencer.
Obrestno financiranje
- 12,51 € x 48 mesecev
- 15,99 € x 36 mesecev
- 22,97 € x 24 mesecev
- 43,98 € x 12 mesecev
- 86,03 € x 6 mesecev
- 170,15 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 158059RIE | G 3/4 | 70.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 469,55 € |  | |
| 158058RIE | G 1/2 | 70.0 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 469,55 € | | |
| 158060RIE | G 1 | 125.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 535,56 € | |
Opis
Ball valve 3/2-way »variobloc«, with pneumatic drive, with ventilation and silencer, Size 2, G 1/2, Operating pressure max. 25 bar
Used as the main shut-off element, especially for flanging onto the start of a variobloc service unit.
The variant with pneumatic drive (size 2) allows the use even in poorly accessible areas as a remote control. With pressure relief and silencer.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. obratovalni tlak [bar] | 25 |
| Velikost | 2 |
| Max. sobna temperatura [°C] | 80 |
| Min. vodeni tlak [bar] | 5.6 |
| Max. vodeni tlak [bar] | 7.4 |
| Pretok [l/min] | 9000 |

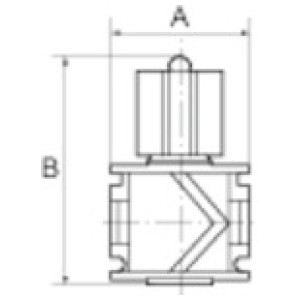

| A [mm] | 70.0 |
| B [mm] | 120.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
