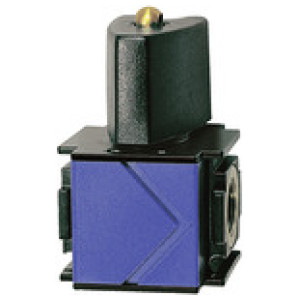

Krogelni ventil 3/2 »varioblok«, zaklepni, Velikost 2, G 3/4
SKU: 100730RIE
EAN: 4047322168984

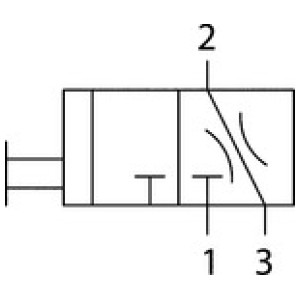

Ball valve 3/2-way »variobloc«, lockable, with ventilation and silencer, Size 2, G 3/4, Operating pressure max. 25 bar
Used as the main shut-off element, especially for flanging onto the start of a variobloc service unit.
With pressure relief and silencer. Can be locked with a standard padlock.
Čas dobave: Predvidoma 3 - 5 dni
93,87 €
ali od 17,21 € / mesec
Izračunaj obrok
Obrestno financiranje
- 17,21 € x 6 mesecev
- 34,03 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

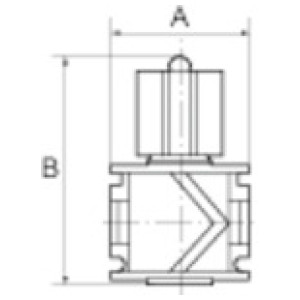

| Šifra | Navoj | Velikost | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 100729RIE | G 1/2 | 2 | 70.0 | 92.0 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 93,87 € |  | |
| 100731RIE | G 1 | 2 | 125.0 | 92.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 146,16 € | | |
| 100727RIE | G 1/4 | 1 | 48.0 | 80.0 | 4300 | Čas dobave: Predvidoma 3 - 5 dni | 63,39 € | | |
| 100728RIE | G 3/8 | 1 | 48.0 | 80.0 | 4400 | Čas dobave: Predvidoma 3 - 5 dni | 57,88 € | | |
| 100730RIE | G 3/4 | 2 | 70.0 | 92.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 93,87 € | |
Opis
Ball valve 3/2-way »variobloc«, lockable, with ventilation and silencer, Size 2, G 3/4, Operating pressure max. 25 bar
Used as the main shut-off element, especially for flanging onto the start of a variobloc service unit.
With pressure relief and silencer. Can be locked with a standard padlock.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. obratovalni tlak [bar] | 25 |
| Velikost | 2 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 11000 |
| A [mm] | 70.0 |
| B [mm] | 92.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
