krogelni ventil nerjavno jeklo 1.4408, 1-delno, mala, G 1/2
SKU: 103479RIE
EAN: 4047322080958
Stainless steel ball valve 1.4401/1.4408, 1-piece, Small series, Operating temp. -20 °C to 150 °C, G 1/2, DN 15, PN max. 63 bar
Čas dobave: Predvidoma 3 - 5 dni
45,86 €

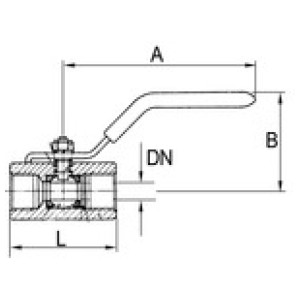

Šifra | Navoj | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
103478RIE | G 3/8 | 10 | 30.0 | 51.0 | 82.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,26 € | ||
103477RIE | G 1/4 | 8 | 30.0 | 46.5 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 37,86 € | ||
103480RIE | G 3/4 | 20 | 50.0 | 68.0 | 94.0 | Čas dobave: Predvidoma 3 - 5 dni | 54,81 € | ||
103479RIE | G 1/2 | 15 | 45.0 | 64.0 | 92.0 | Čas dobave: Predvidoma 3 - 5 dni | 45,86 € |
Opis
Stainless steel ball valve 1.4401/1.4408, 1-piece, Small series, Operating temp. -20 °C to 150 °C, G 1/2, DN 15, PN max. 63 bar
Tehnični podatki in specifikacije
Ohišje | Stainless steel 1.4401/1.4408 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Krogla | Stainless steel 1.4408 |
Krogelno tesnilo | RPTFE (15 % glass fibre reinforced) |
Stebelno tesnilo | PTFE |
Ročica | Stainless steel 1.4301, with plastic coating |
Delovni tlak | max. 63 bar (dependent on temperature) |
Navoj | G 1/2 |
DN | 15 |
Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
A [mm] | 92.0 |
B [mm] | 45.0 |
L [mm] | 64.0 |
