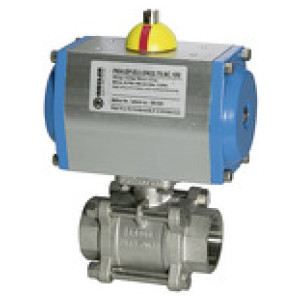

krogelni ventil nerjavno jeklo, Pneumat. vklop, Rp 1 1/4
SKU: 103609RIE
EAN: 4047322076616
2-way stainless steel ball valve, Pneumat. actuation drive, single-acting, Operating temp. -20°C to 70°C, Rp 1 1/4, PN max 63 bar
2-way cock, 3-piece, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Obrestno financiranje
- 17,28 € x 48 mesecev
- 22,08 € x 36 mesecev
- 31,73 € x 24 mesecev
- 60,73 € x 12 mesecev
- 118,80 € x 6 mesecev
- 234,96 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

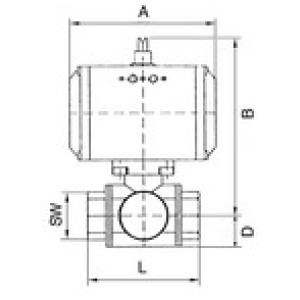

| Šifra | Navoj | D [mm] | DN | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103612RIE | Rp 2 1/2 | 60.0 | 65 | 85 | 185.0 | 221.0 | 268.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.579,86 € |  | |
| 103607RIE | Rp 3/4 | 27.0 | 20 | 35 | 80.0 | 133.0 | 148.0 | Čas dobave: Predvidoma 3 - 5 dni | 515,91 € | | |
| 103605RIE | Rp 1/2 | 24.0 | 15 | 29 | 75.0 | 133.0 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 427,45 € | | |
| 103610RIE | Rp 1 1/2 | 40.0 | 40 | 58 | 120.0 | 180.0 | 198.0 | Čas dobave: Predvidoma 3 - 5 dni | 889,60 € | | |
| 103608RIE | Rp 1 | 33.0 | 25 | 41 | 90.0 | 137.0 | 170.0 | Čas dobave: Predvidoma 3 - 5 dni | 590,28 € | | |
| 103611RIE | Rp 2 | 50.0 | 50 | 74 | 140.0 | 209.0 | 224.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.012,88 € | | |
| 103613RIE | Rp 3 | 67.0 | 80 | 100 | 205.0 | 221.0 | 280.0 | Čas dobave: Predvidoma 3 - 5 dni | 2.081,84 € | | |
| 103606RIE | Rp 1/2 | 24.0 | 15 | 29 | 75.0 | 116.0 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 368,78 € | | |
| 103609RIE | Rp 1 1/4 | 37.0 | 32 | 50 | 110.0 | 161.0 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 648,77 € | |
Opis
2-way stainless steel ball valve, Pneumat. actuation drive, single-acting, Operating temp. -20°C to 70°C, Rp 1 1/4, PN max 63 bar
2-way cock, 3-piece, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Standardised interfaces:
Actuator/valve interface: Four or eight female threads in the actuator housing acc. to EN ISO 5211.
Actuator/control valve interface: Acc. to NAMUR or VDI/VDE 3845.
Actuator/signalling device interface: Acc. to VDI/VDE 3845 (NAMUR).
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Max. obratovalni tlak [bar] | 63 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Stainless steel 1.4401, with ISO flange plate |
| Premaz za krogelni ventil | PTFE |
| Premaz za pogon | NBR |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Acc. to NAMUR |
| Navoj | Rp 1 1/4 |
| DN | 32 |
| Različica | single-acting - spring to close |
| B [mm] | 188.0 |
| L [mm] | 110.0 |
| A [mm] | 161.0 |
| D [mm] | 37.0 |
| a/f [mm] | 50 |
