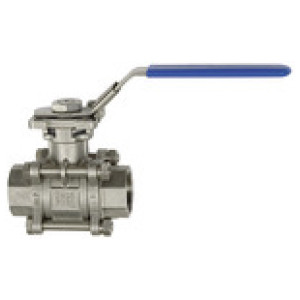

krogelni ventil nerjavno jeklo, za DIN 3202-M3, G 3/8
SKU: 135911RIE
EAN: 4047322501538
Stainless steel ball valve, 3-piece, length acc. to DIN 3202-M3, G 3/8, DN 10, Operating temp. -20 °C to 180 °C, PN max. 63 bar
Čas dobave 3 - 5 dni
58,46 €
46,77 €

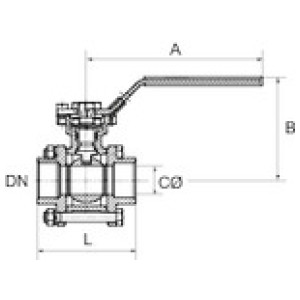

| Šifra | ISO 5211 | Navoj | C Ø [mm] | DN | PN [bar] | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 135913RIE | F 03 / F 04 | G 3/4 | 20.0 | 20 | 63 | 80.0 | 81.5 | 125.0 | Čas dobave 3 - 5 dni | 73,21 € |  | |
| 135915RIE | F 04 / F 05 | G 1 1/4 | 32 | 63 | 110.0 | 93.5 | 150.0 | Čas dobave 3 - 5 dni | 131,85 € | | ||
| 135919RIE | F 07 / F 10 | G 3 | 76.0 | 80 | 40 | 205.0 | 136.0 | 350.0 | Čas dobave 3 - 5 dni | 780,36 € | | |
| 135914RIE | F 04 / F 05 | G 1 | 25 | 63 | 90.0 | 88.5 | 150.0 | Čas dobave 3 - 5 dni | 99,91 € | | ||
| 135912RIE | F 03 / F 04 | G 1/2 | 15 | 63 | 75.0 | 77.5 | 125.0 | Čas dobave 3 - 5 dni | 59,55 € | | ||
| 135917RIE | F 05 / F 07 | G 2 | 47.0 | 50 | 63 | 140.0 | 120.5 | 190.0 | Čas dobave 3 - 5 dni | 247,20 € | | |
| 135910RIE | F 03 / F 04 | G 1/4 | 10.5 | 8 | 63 | 60.0 | 68.5 | 125.0 | Čas dobave 3 - 5 dni | 46,77 € | | |
| 135916RIE | F 05 / F 07 | G 1 1/2 | 38.0 | 40 | 63 | 120.0 | 113.5 | 190.0 | Čas dobave 3 - 5 dni | 172,10 € | | |
| 135918RIE | F 07 / F 10 | G 2 1/2 | 64.0 | 65 | 40 | 185.0 | 125.0 | 350.0 | Čas dobave 3 - 5 dni | 574,97 € | | |
| 135911RIE | F 03 / F 04 | G 3/8 | 12.5 | 10 | 63 | 60.0 | 68.5 | 125.0 | Čas dobave 3 - 5 dni | 46,77 € | |
Opis
Stainless steel ball valve, 3-piece, length acc. to DIN 3202-M3, G 3/8, DN 10, Operating temp. -20 °C to 180 °C, PN max. 63 bar
Tehnični podatki in specifikacije
| Ohišje | Stainless steel 1.4408 |
| Bore diameter padlock | ca. 7.7 mm |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 180 |
| Krogla | Stainless steel 1.4401 |
| Krogelno tesnilo | PTFE (15 % glass fibre reinforced) |
| Stebelno tesnilo | PTFE |
| Ročica | Stainless steel 1.4301, with plastic coating |
| Navoj | G 3/8 |
| DN | 10 |
| PN [bar] | 63 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1, flange plate ISO 5211 |
| ISO 5211 | F 03 / F 04 |
| A [mm] | 125.0 |
| B [mm] | 68.5 |
| L [mm] | 60.0 |
| C Ø [mm] | 12.5 |
