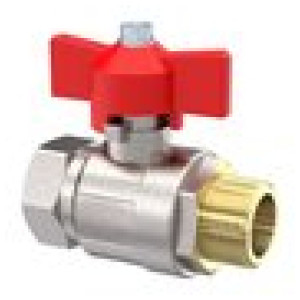

krogelni ventil, osnovna obilka, IT/ET, nikljana medenina, G 1 slika
krogelni ventil, osnovna obilka, IT/ET, nikljana medenina, G 1 slika

* slike so simbolične

krogelni ventil, osnovna obilka, IT/ET, nikljana medenina, G 1

SKU: 103121RIE
EAN: 4047322400091

Ball valve, Butterfly handle, Standard type, IT/ET, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Čas dobave: Predvidoma 3 - 5 dni
32,70 €
V košarico
Primerjaj z ostalimi

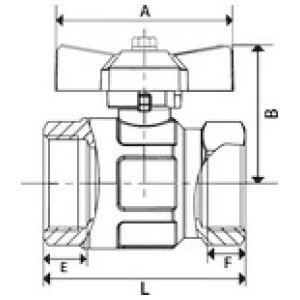

Šifra Navoj E [mm] F [mm] PN [bar] DN B [mm] A [mm] L [mm] Zaloga Cena Nakup Natisni
103122RIE G 1 1/4 17.0 17.0 30 32 64.0 70.0 91.5
Čas dobave: Predvidoma 3 - 5 dni
 52,70 €
Natisni
103120RIE G 3/4 13.5 12.5 40 20 47.0 62.0 66.5
Čas dobave: Predvidoma 3 - 5 dni
 22,33 €
Natisni
103118RIE G 3/8 10.5 10.0 50 10 37.0 47.0 54.0
Čas dobave: Predvidoma 3 - 5 dni
 14,88 €
Natisni
103119RIE G 1/2 11.5 12.0 50 15 41.0 47.0 58.5
Čas dobave: Predvidoma 3 - 5 dni
 15,98 €
Natisni
103117RIE G 1/4 10.5 10.0 50 8 37.0 47.0 54.0
Čas dobave: Predvidoma 3 - 5 dni
 14,70 €
Natisni
103121RIE G 1 14.5 15.0 40 25 51.0 62.0 78.5
Čas dobave: Predvidoma 3 - 5 dni
 32,70 €
Natisni

Opis

Ball valve, Butterfly handle, Standard type, IT/ET, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1, PN max. 40 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Tehnični podatki in specifikacije

Material Nickel-plated brass
Navoj G 1
Krogla Chrome-plated brass
Krogelno tesnilo PTFE
Stebelno tesnilo NBR / FKM (Seal package consists of 2 O-rings)
PN [bar] 40
Delovna temperatura -20 °C to 150 °C (no steam)
Ročica - metuljček Aluminium, painted red
Standardni navoj G-thread acc. to DIN EN ISO 228-1, tolerance class B
Material navojev Bright brass
DN 25
L [mm] 78.5
A [mm] 62.0
B [mm] 51.0
E [mm] 14.5
F [mm] 15.0
