* slike so simbolične

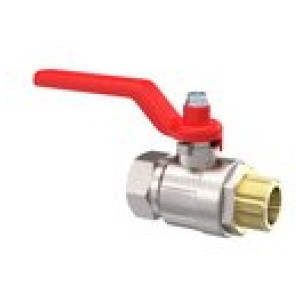

krogelni ventil, osnovna obilka, IT/ET, nikljana medenina, G 1/4
SKU: 103103RIE
EAN: 4047322397421
Ball valve, Manual lever, Standard type, IT/ET, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1/4, DN 8, PN max. 50 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Čas dobave 3 - 5 dni
14,70 €

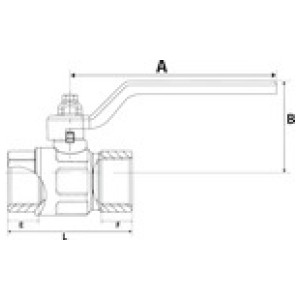

| Šifra | Navoj | DN | F [mm] | E [mm] | B [mm] | PN [bar] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103104RIE | G 3/8 | 10 | 10.0 | 10.5 | 37.0 | 50 | 54.0 | 80.0 | Čas dobave 3 - 5 dni | 14,88 € |  | |
| 103107RIE | G 1 | 25 | 15.0 | 14.5 | 59.0 | 40 | 78.5 | 113.0 | Čas dobave 3 - 5 dni | 32,70 € | | |
| 103110RIE | G 2 | 50 | 22.0 | 21.0 | 96.0 | 25 | 122.0 | 157.8 | Čas dobave 3 - 5 dni | 123,95 € | | |
| 103105RIE | G 1/2 | 15 | 12.0 | 11.5 | 41.0 | 50 | 58.5 | 80.0 | Čas dobave 3 - 5 dni | 15,98 € | | |
| 103106RIE | G 3/4 | 20 | 12.5 | 13.5 | 55.0 | 40 | 66.5 | 113.0 | Čas dobave 3 - 5 dni | 22,33 € | | |
| 103103RIE | G 1/4 | 8 | 10.0 | 10.5 | 37.0 | 50 | 54.0 | 80.0 | Čas dobave 3 - 5 dni | 14,70 € | | |
| 103109RIE | G 1 1/2 | 40 | 18.5 | 19.0 | 81.0 | 30 | 105.5 | 138.0 | Čas dobave 3 - 5 dni | 78,38 € | | |
| 103108RIE | G 1 1/4 | 32 | 17.0 | 17.0 | 75.0 | 30 | 91.5 | 138.0 | Čas dobave 3 - 5 dni | 52,70 € | |
Opis
Ball valve, Manual lever, Standard type, IT/ET, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 1/4, DN 8, PN max. 50 bar
Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Navoj | G 1/4 |
| Krogla | Chrome-plated brass |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | NBR / FKM (Seal package consists of 2 O-rings) |
| PN [bar] | 50 |
| Delovna temperatura | -20 °C to 150 °C (no steam) |
| Ročica | Galvanised steel, painted red |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1, tolerance class B |
| Material navojev | Nickel-plated brass |
| DN | 8 |
| L [mm] | 54.0 |
| A [mm] | 80.0 |
| B [mm] | 37.0 |
| E [mm] | 10.5 |
| F [mm] | 10.0 |
