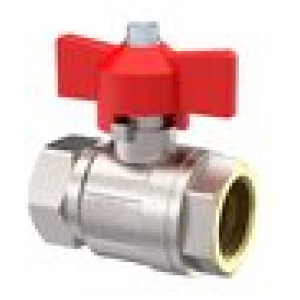

krogelni ventil, osnovna obilka, IT/IT, nikljana medenina, G 3/8 slika
krogelni ventil, osnovna obilka, IT/IT, nikljana medenina, G 3/8 slika

* slike so simbolične

krogelni ventil, osnovna obilka, IT/IT, nikljana medenina, G 3/8

SKU: 103112RIE
EAN: 4047322399944

Ball valve, Butterfly handle, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 3/8, PN max. 50 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Čas dobave: Predvidoma 3 - 5 dni
14,88 €
Primerjaj z ostalimi

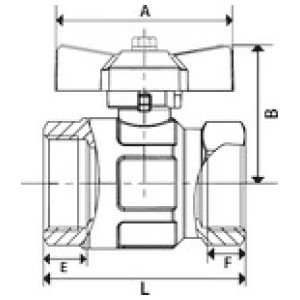

Šifra Navoj E [mm] F [mm] DN PN [bar] B [mm] A [mm] L [mm] Zaloga Cena Nakup Natisni
103115RIE G 1 15.0 15.0 25 40 59.0 62.0 70.0
Čas dobave: Predvidoma 3 - 5 dni
32,70 € Natisni
103114RIE G 3/4 13.5 12.5 20 40 55.0 62.0 57.5
Čas dobave: Predvidoma 3 - 5 dni
22,33 € Natisni
103112RIE G 3/8 10.0 10.0 10 50 37.0 47.0 44.4
Čas dobave: Predvidoma 3 - 5 dni
14,88 € Natisni
103113RIE G 1/2 12.5 12.0 15 50 41.0 47.0 50.5
Čas dobave: Predvidoma 3 - 5 dni
15,98 € Natisni
103111RIE G 1/4 10.0 10.0 8 50 37.0 47.0 44.4
Čas dobave: Predvidoma 3 - 5 dni
14,70 € Natisni
103116RIE G 1 1/4 16.5 17.0 32 30 75.0 70.0 80.5
Čas dobave: Predvidoma 3 - 5 dni
52,70 € Natisni

Opis

Ball valve, Butterfly handle, Standard type, IT/IT, nickel-plated brass, Operating temp. -20 °C to 150 °C, G 3/8, PN max. 50 bar

Applications: Compressed air, water, non-toxic and non-corrosive gases, heating systems and air conditioning systems.

Tehnični podatki in specifikacije

Material Nickel-plated brass
Navoj G 3/8
Krogla Chrome-plated brass
Krogelno tesnilo PTFE
Stebelno tesnilo NBR / FKM (Seal package consists of 2 O-rings)
PN [bar] 50
Delovna temperatura -20 °C to 150 °C (no steam)
Ročica - metuljček Aluminium, painted red
Standardni navoj G-thread acc. to DIN EN ISO 228-1, tolerance class B
Material navojev Bright brass
DN 10
L [mm] 44.4
A [mm] 47.0
B [mm] 37.0
E [mm] 10.0
F [mm] 10.0
